2014 Dodge Ram Backup Camera
2014 Dodge Ram backup camera systems can be tricky but they are worth fixing. You will learn how to diagnose common problems and choose the right replacement parts. We cover wiring, display errors, and simple fixes you can do at home. This guide helps you see clearly when reversing your truck.
This is a comprehensive guide about 2014 dodge ram backup camera.
Key Takeaways
- Factory System Basics: Many 2014 Rams came with a standard backup camera linked to the rear display.
- Common Issues: Lines missing or blank screens often mean a wiring or sensor problem.
- DIY Fixes: Cleaning the lens and checking fuses can solve simple glitches quickly.
- Aftermarket Upgrades: You can install a new wireless or wired camera if the old one fails.
- Safety First: A working camera prevents accidents and protects your vehicle from damage.
- Professional Help: Complex wiring issues might need a certified technician to resolve.
- Regular Maintenance: Keeping the lens clean ensures you get a clear picture every time.
[FEATURED_IMAGE_PLACEHOLDER]

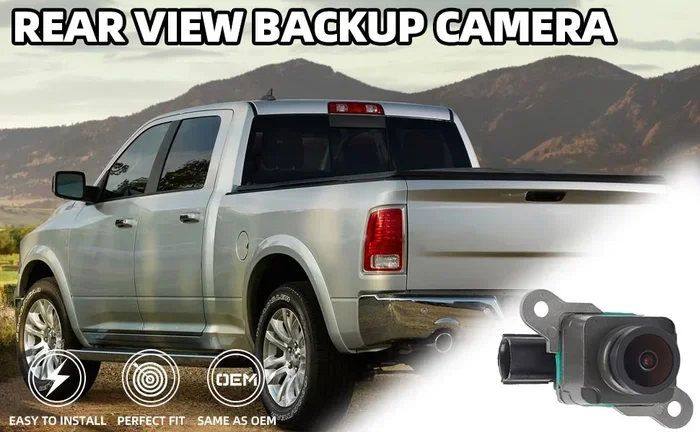

Understanding the 2014 Dodge Ram Backup Camera
The 2014 Dodge Ram backup camera is a helpful tool for drivers. It shows you what is behind your truck on a screen inside the cab. This feature makes reversing safer and easier. Many people rely on this system daily. It helps avoid bumps and scratches.
Not every truck has the same setup. Some models have a screen built into the rearview mirror. Others use the main infotainment display. Knowing your setup helps you fix problems faster. You should check your owner manual for specific details. This guide covers the most common systems found in these trucks.
We will look at how the system works. We will also talk about what goes wrong. You will learn how to spot issues early. This knowledge saves you time and money. Let us dive into the details of your truck safety tech.
How the Factory System Works
The factory backup camera for Dodge Ram connects to the transmission. It turns on when you shift into reverse. The video signal travels through wires to your screen. This happens very quickly. You see the image almost instantly.
The camera sits near the license plate. It faces backward to show the ground and obstacles. Some models show guide lines on the screen. These lines help you steer straight. They move when you turn the wheel. This feature is very useful for parking.
Power comes from the truck battery. A fuse protects the system from power spikes. If the fuse blows, the camera stops working. You need to check the fuse box first. This is a simple step for any owner.
Why This Feature Matters
Safety is the main reason for this tech. Backing up without a view is risky. Children or pets might be behind the truck. A 2014 Dodge Ram backup camera gives you eyes in the back. It reduces blind spots significantly.
It also protects your vehicle. You can see curbs and walls clearly. This prevents dents and scratches on your bumper. Repairing damage costs much more than fixing a camera. Having a clear view gives you peace of mind.
Many buyers look for this feature when shopping. It adds value to your truck. If yours is broken, fixing it is a smart investment. You want your truck to be safe for your family.
Common Problems with Your 2014 Dodge Ram Backup Camera
Tech issues happen with all vehicles. Your 2014 Dodge Ram backup camera might stop working sometimes. You might see a black screen. Or you might see strange lines. These problems are frustrating but often fixable.
One common issue is the image freezing. The video might stay still while you move. This means the sensor or wire is loose. Another issue is the camera not turning on. You shift to reverse but nothing happens. This could be a fuse or switch problem.
Sometimes the picture is blurry. Dirt and mud can block the lens. Other times the wiring gets damaged. Rodents love to chew on wires. You need to inspect the area behind the truck. Finding the root cause is the first step to fixing it.
Dealing with Missing Lines
Guide lines help you park straight. If they disappear, it is hard to judge distance. This is a known issue with some backup camera grid lines not showing. The lines might vanish due to a software glitch. Or the camera itself might be faulty.
You can try resetting the system. Turn the truck off and remove the key. Wait a few minutes then start again. This sometimes clears the error. If lines are still missing, the camera might need replacement.
aftermarket cameras sometimes have different line settings. You might need to adjust the settings in the menu. Check your manual for how to access these options. It is a small fix that makes a big difference.
Blank Screen or No Image
A blank screen is a common complaint. You shift into reverse but the screen stays dark. This often points to a power issue. The camera might not be getting electricity. Check the fuse box under the hood. Look for the label that says backup or camera.
Wiring harnesses can also fail. The connection behind the screen might be loose. Vibration from driving can shake connections loose over time. You may need to open the dash to check. This is more advanced but doable.
If the screen works for other things, the issue is specific to the camera input. This suggests the camera unit is dead. You will need to replace the camera module. There are many options available for this truck.
Troubleshooting Steps for 2014 Dodge Ram Owners
You do not always need a mechanic. Many fixes are simple. Start with the basics before spending money. A logical approach helps you find the problem. Here is a step-by-step process for your 2014 Dodge Ram backup camera.
First, check the lens. Is it dirty? Clean it with a soft cloth. Use water if needed. Do not use harsh chemicals. Second, check the fuse. Find the fuse box and inspect the camera fuse. Replace it if the metal strip is broken.
Third, check the wiring. Look under the truck near the tailgate. Ensure wires are connected tightly. Look for cuts or chew marks. Fourth, test the screen. Make sure the display works for other functions. This isolates the problem to the camera or the screen.
Checking Fuses and Power
Fuses are the easiest thing to check. They protect your electronics from power surges. If a fuse blows, the circuit breaks. The camera stops getting power. You need a fuse puller tool. This is cheap and easy to use.
Locate the fuse panel. It is usually under the dashboard or in the engine bay. Look at the diagram on the cover. Find the fuse for the rear view or backup system. Pull it out and hold it to the light. If the wire inside is broken, it is bad.
Replace it with a fuse of the same amperage. Do not use a higher rating. That could damage your truck electronics. Once replaced, test the camera. If it works, you solved the problem. If not, move to the next step.
Inspecting Wiring and Connections
Wires carry the video signal. If they are damaged, the signal stops. Check the connection at the camera first. It is behind the tailgate. You might need to remove a panel. Make sure the plug is seated firmly.
Check the wire running along the truck bed. Look for cracks in the insulation. Exposed wires can cause shorts. Use electrical tape to fix minor damage. For major damage, you might need new wire.
Also check the connection at the screen. Open the head unit if possible. Ensure the input cable is tight. Loose connections cause flickering or no signal. Securing these connections often solves the issue.
Upgrading to an Aftermarket 2014 Dodge Ram Backup Camera
Sometimes the factory camera is too old. Or it might be damaged beyond repair. An aftermarket upgrade is a great option. You can get better quality and new features. A wired backup camera with monitor kit is popular.
Aftermarket cameras often have higher resolution. You see clearer images at night. Some have wide-angle lenses. This shows more of the area behind you. You can also choose different screen sizes.
Installation is straightforward for many kits. You can keep your old screen or add a new one. Some systems use a mirror monitor. This replaces your rearview mirror. It is less clutter than a new dash screen.
Wired vs Wireless Options
You have two main choices for installation. Wired systems are very reliable. They send a strong signal directly to the screen. There is no interference from other devices. However, you must run a cable through the truck.
Wireless systems are easier to install. They send the video signal over radio waves. You do not need to run long cables. This saves time and effort. But they can sometimes have signal lag. Weather might affect the connection too.
For a 2014 Dodge Ram backup camera upgrade, wired is often best. It matches the factory feel. But if you want a quick DIY job, wireless works well. Consider your skills and tools before choosing.
Choosing the Right Monitor
The screen size matters for visibility. A small screen might be hard to see. A large screen takes up dashboard space. Find a balance that fits your cab. Many kits come with a small screen included.
You can also use your existing infotainment system. Some aftermarket cameras plug into the AUX input. Others use a specific video input. Check compatibility before buying. You want everything to work together smoothly.
Night vision is another feature to look for. Infrared lights help see in the dark. This is crucial for parking in unlit areas. Make sure the camera has good low-light performance. This keeps you safe at night.
Installation Tips and Best Practices
Installing a new camera requires care. You need to work safely. Disconnect the battery before starting. This prevents shocks and short circuits. Take your time with the wiring. Rushing leads to mistakes.
Route the wires carefully. Avoid hot parts and moving parts. Secure the wires with clips or tape. Loose wires can rattle and break. Make sure the camera is mounted tightly. It should not move when you drive.
Test the system before finishing. Connect everything and shift into reverse. Check the image quality. Adjust the angle if needed. Once it works, tuck everything away neatly. A clean install looks professional.
Tools You Will Need
You need basic tools for this job. A socket set helps remove panels. Screwdrivers are needed for screws. Wire cutters and strippers are essential. Electrical tape seals your connections.
A multimeter helps check power. You can test if wires have voltage. This saves guessing time. A drill might be needed for mounting. Use the right bit for your truck material.
Safety glasses protect your eyes. Gloves protect your hands. Working under a truck can be dirty. Wear old clothes you do not mind staining. Being prepared makes the job easier.
Common Mistakes to Avoid
Do not forget to disconnect the battery. This is the biggest safety risk. Live wires can spark and cause damage. Always remove the negative terminal first.
Do not run wires near brake lines. This is dangerous and illegal. Keep video wires separate from power wires. This reduces interference. Cross them at right angles if they must meet.
Do not overtighten screws. Plastic clips break easily. Use gentle pressure when securing panels. Also, do not ignore water sealing. Seal any holes you drill. Water damage ruins electronics quickly.
Maintenance for Long-Term Performance
Keeping your camera working is easy. Regular cleaning is the most important step. Dirt builds up on the lens over time. A dirty lens gives a blurry picture. Wipe it down every few weeks.
Check the wiring occasionally. Look for new damage or loose plugs. Winter conditions can be hard on trucks. Salt and snow can corrode connections. Protect your wiring from the elements.
Update your software if possible. Some newer systems have firmware updates. These fix bugs and improve performance. Check with the manufacturer for updates. This keeps your system running smoothly.
Keeping the Lens Clean
Use a microfiber cloth for cleaning. It does not scratch the glass. Use mild soap and water for stuck-on dirt. Avoid abrasive cleaners. They can damage the lens coating.
Check the lens before long trips. You want clear vision when you need it. A quick wipe takes only seconds. It is a small habit with big benefits. Clear vision prevents accidents.
If the lens is cracked, replace it. A broken lens distorts the image. You cannot trust a damaged camera. Safety is more important than cost. Get a new lens or camera unit.
Conclusion
Your 2014 Dodge Ram backup camera is a vital safety tool. It helps you park and reverse with confidence. Problems can happen, but most are fixable. Start with simple checks like fuses and cleaning.
If repairs do not work, consider an upgrade. Aftermarket options offer great quality and features. Whether you fix it or replace it, prioritize safety. A working camera protects you and your truck.
Take action today if you notice issues. Do not wait until you have an accident. Use this guide to troubleshoot and fix your system. Drive safely and enjoy your upgraded truck technology.
Frequently Asked Questions
How do I reset my 2014 Dodge Ram backup camera?
Turn off the truck and remove the key. Wait for five minutes to drain residual power. Restart the engine and shift into reverse to test. This often clears temporary software glitches.
Why is my backup camera showing lines on the screen?
Missing or distorted lines often indicate a wiring issue. It could also be a fault with the camera sensor itself. Check connections first before replacing the unit.
Can I install a wireless camera on my 2014 Ram?
Yes, you can install a wireless system easily. It avoids running long cables through the truck bed. Just ensure the signal is strong enough for your setup.
Where is the backup camera fuse located?
The fuse is usually in the interior fuse panel or under the hood. Check the diagram on the fuse box cover for the correct label. Replace it with the same amperage if blown.
Does a backup camera record video footage?
Most standard factory cameras do not record video. They only show a live feed when you reverse. You need a special dashcam system for recording.
How much does it cost to replace a backup camera?
Costs vary based on parts and labor. A DIY kit can cost under two hundred dollars. Professional installation will be more expensive but ensures proper wiring.
