How to Connect Camera to Alpine Ilx-f309

Connecting a camera to your Alpine ILX-F309 transforms your driving experience with enhanced safety and visibility. This guide covers everything from choosing the right camera type (wired vs. wireless) to detailed wiring, unit configuration, and solving common issues. Whether you’re installing a rearview, front, or side camera, follow our clear steps for a seamless setup. Always prioritize safe installation practices and double-check all connections before driving.

Key Takeaways

• Check Compatibility First: The ILX-F309 supports both wired (Analog RCA) and wireless (Alpine’s proprietary) cameras. Confirm your camera type matches the head unit’s input.
• Wired Installation is Most Reliable: For permanent, interference-free video, a hardwired connection using the dedicated CAMERA input is the best method for rearview cameras.
• Wireless Offers Convenience: Alpine’s wireless camera kits (sold separately) eliminate long cable runs but require proper pairing and can be susceptible to signal interference.
• Unit Configuration is Crucial: After physical connection, you must enable and calibrate the camera within the ILX-F309’s system settings for it to function.
• Routing Cables Safely is Key: When running wires through the vehicle, avoid sharp edges, moving parts (like hinges), and always use grommets when passing through firewalls or panels.

[FEATURED_IMAGE_PLACEHOLDER]

Unlocking Your Vehicle’s Vision: Connecting a Camera to the Alpine ILX-F309

So, you’ve got that sleek Alpine ILX-F309 installed in your dash, and you’re ready to add a set of eyes to your vehicle. Connecting a camera to your Alpine ILX-F309 is one of the most rewarding upgrades you can make. It’s not just about parallel parking anymore. A properly connected camera system massively boosts safety, reduces stress in tight spots, and can even help you monitor a trailer. But the process can feel daunting if you’ve never dipped into your car’s wiring. Don’t worry. We’re going to walk through this together, step-by-step, like a friend showing you the ropes. The goal? To get that live video feed on your Alpine’s beautiful 9-inch screen without a hitch.

First, let’s get one thing straight: the Alpine ILX-F309 is a powerful, modern head unit designed with camera integration in mind. It has a dedicated CAMERA input on the back, but that’s just the start. The magic happens in the unit’s deep menu system where you tell it what kind of camera you’ve plugged in and how you want it to behave. This guide will cover both the classic, rock-solid wired connection and the more modern wireless approach. We’ll talk about the tools you need, how to hide cables like a pro, and exactly which buttons to press on the ILX-F309 to make it all work. By the end, you’ll be confident in your ability to complete this project yourself, saving money and gaining a deep understanding of your vehicle’s new tech.

Understanding Your Alpine ILX-F309’s Camera Capabilities

Before you buy a single wire or camera, you need to understand what your Alpine ILX-F309 is actually capable of. This isn’t a one-size-fits-all scenario. The head unit is versatile, but it has specific requirements. Knowing these will save you from a costly mistake or a frustrating return.

The Dedicated Camera Input: Your Gateway

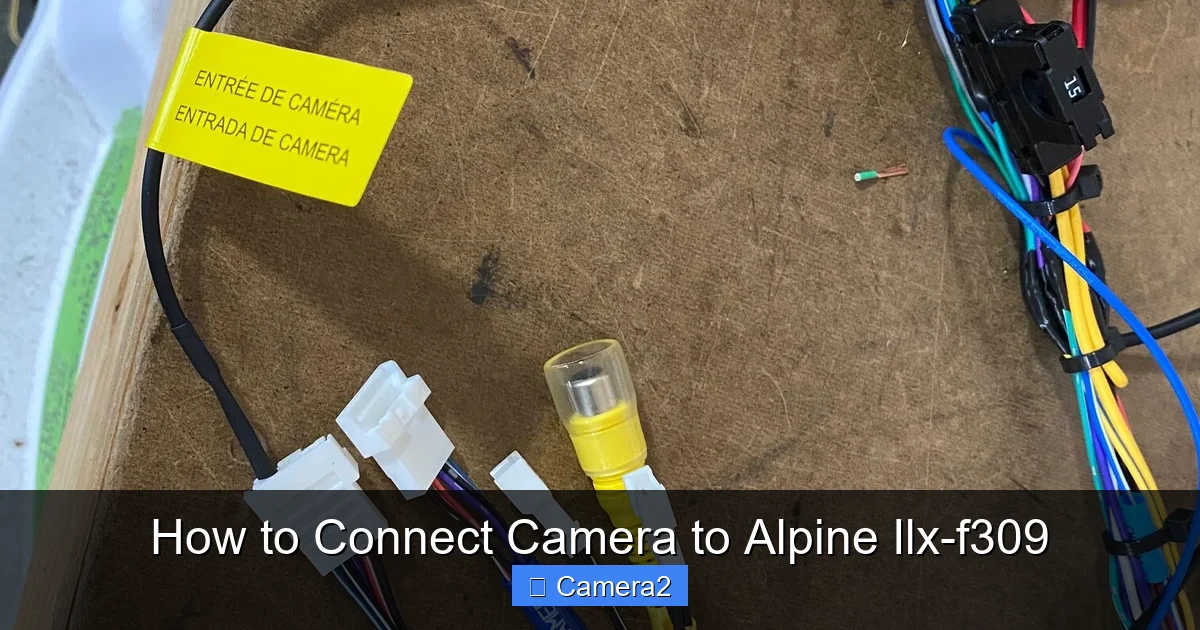

On the rear of the ILX-F309, you’ll find a round, yellow RCA-style connector labeled CAMERA. This is the physical port for a traditional wired camera. It expects a standard analog video signal. This input is primarily designed for a rearview camera that activates when you shift into reverse. However, with a bit of clever wiring and setup, you can use this input for a front or side camera too, often by triggering it with a separate switch or a different vehicle signal (like the left turn signal). The key takeaway: this port is for one camera feed at a time.

Wireless Camera Compatibility: The Alpine Ecosystem

The ILX-F309 also supports Alpine’s own line of wireless cameras, like the popular Alpine HCE-C212RD or HCE-C252. These systems use a separate transmitter mounted at the rear of the vehicle and a receiver that plugs into the head unit’s camera input. The communication is proprietary to Alpine’s system. You cannot simply pair any generic wireless camera to the ILX-F309. It must be an Alpine-branded wireless kit designed for it. This is the most important compatibility rule for the wireless route.

Multiple Cameras? Yes, But With a Caveat

Can you connect more than one camera? The short answer is yes, but not simultaneously on the main screen. The ILX-F309 has only one physical camera input. To use multiple cameras (e.g., rear, front, and two side views), you need an external camera selector switch. This is a small hardware module that takes inputs from all your cameras and outputs a single signal to the ILX-F309’s camera port. You then manually press a button on the switch or a dedicated in-vehicle button to cycle between views. The ILX-F309 itself does not have a built-in software multiplexer for multiple camera feeds.

Prerequisites: What You’ll Need Before Starting

You wouldn’t bake a cake without flour and eggs. Similarly, don’t start this project without gathering your tools and parts. A well-prepared workspace prevents mid-project trips to the store and reduces frustration.

Essential Tools for the Job

You’ll need a basic toolkit. Get a set of plastic trim removal tools (they save your car’s interior), a set of screwdrivers (Phillips and flathead), a good-quality wire stripper/crimper, and electrical tape or heat-shrink tubing. A multimeter is incredibly useful for finding the correct reverse light wire and constant 12V power. Don’t forget a drill with hole saw bits if you need to run a wire through a firewall or panel—but use this sparingly and with extreme caution. A flashlight or headlamp is a lifesaver in dark footwells and trunk cavities.

Choosing Your Camera: Wired vs. Wireless

This is your biggest decision. A wired camera (like the Alpine HCE-C212) is a single camera module with a long video/power cable. It’s the most reliable, with zero lag and no risk of signal dropout. The downside is the tedious task of running that cable from the back of the car to the front. A wireless kit (like the Alpine HCE-C252RD) includes a transmitter you mount at the rear and a receiver that plugs into your ILX-F309. Installation is faster since you only run a small power wire for the transmitter. However, wireless can occasionally suffer from interference from other devices or weather, and there is a tiny amount of latency (delay). For most users, a wired camera is the gold standard for reliability, while wireless is great for easier DIY installs or vehicles where running a cable is exceptionally difficult.

Gathering Supplies: Wire, Connectors, and More

If you’re going wired, you need the camera’s cable, of course. You’ll also need 16-18 gauge primary wire (red for power, black for ground) to extend the camera’s power leads if they aren’t long enough. Get a bag of butt connectors or soldering supplies for permanent, weatherproof connections. Ring terminals are perfect for grounding to a clean metal bolt. A fuse tap or add-a-circuit kit is the safest way to get switched 12V power (power that turns on/off with the car) for the camera, protecting it from short circuits. Finally, a long roll of electrical tape and a handful of zip ties are essential for securing and insulating your work.

Connecting Wired Cameras: The Step-by-Step Process

Let’s get our hands dirty. We’ll focus on the most common and reliable installation: a hardwired rearview camera. The principles for a front camera are identical, you just change your trigger source and mounting location.

Step 1: Mounting the Camera Securely

Your first physical task is mounting the camera. For a rearview camera, the license plate area is the most common spot. Clean the area thoroughly. Most cameras come with a bracket and screws. Position it so the lens is centered and has a clear view over the license plate. Use the provided screws to secure it. Critical Tip: Before final tightening, have someone put the car in reverse and check the view on your ILX-F309 screen (you can temporarily power the head unit with the ignition on). Adjust the angle so you see a good portion of the bumper and the ground immediately behind the car. Too high, and you won’t see close obstacles; too low, and you’ll see nothing but pavement. Once perfect, tighten all screws securely.

Step 2: Routing the Cable from Rear to Front

This is the marathon. The goal is to run the camera’s cable along the inside of the vehicle, hidden from view, to the dashboard. Start at the camera. Look for a path along the driver’s side (in left-hand drive cars) as this is usually the shortest route to the engine bay and firewall. You’ll likely need to go: trunk -> rear seat area -> along the door sills or under carpet -> under the front seats -> up the center console or A-pillar -> to the head unit. Use trim tools to gently pry away plastic panels (kick panels, sill covers, B-pillar trim) to create a channel. Be patient and feel for clips. Never force a panel. When you pass the cable through any metal hole (like a firewall grommet), protect it with a rubber grommet to prevent chafing from vibration. Use zip ties every 12-18 inches to secure the cable to existing wiring harnesses or the vehicle frame. Keep it away from the exhaust, hot engine parts, and moving components like seat tracks or pedals.

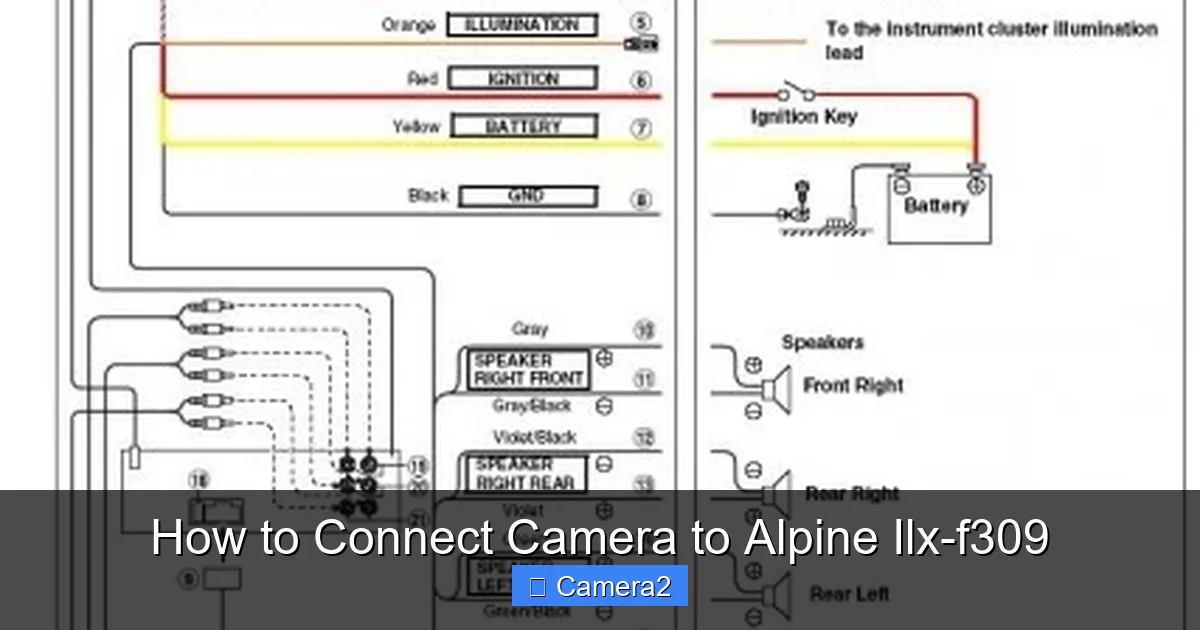

Step 3: Making the Electrical Connections at the Head Unit

With the cable routed, you now have a bundle of wires at your feet near the ILX-F309. The camera cable will have at least three wires: Video (usually yellow RCA), Ground (black), and Power (red). Some may have an additional reverse trigger wire. You need to connect these to the corresponding wires from your vehicle’s harness or to a new fused power source.

• Video (Yellow RCA): This simply plugs into the yellow CAMERA input on the back of the ILX-F309. Ensure it’s clicked in fully.
• Ground (Black): Find a clean, bare metal spot on the vehicle’s chassis near the head unit. Use a self-tapping screw or a bolt to secure a ring terminal on this wire. A good ground is essential for a clean, noise-free picture.
• Power (Red): This needs switched 12V power. This means power that is only live when the ignition is in the ACC or ON position. The safest method is using an add-a-circuit fuse tap in your vehicle’s fuse box. Find a circuit that is switched (consult your owner’s manual or use a multimeter). Plug the tap in, connect the red wire to its output, and place an appropriately sized fuse (usually 1-2 amps) in the tap. This protects the camera and your car’s wiring.
• Reverse Trigger (If applicable): This wire tells the ILX-F309 to switch to the camera view. You must connect it to the vehicle’s reverse light circuit. Find the reverse light wire in the trunk (it’s the wire that gets 12V when you shift into reverse). Use a test light or multimeter to confirm. Connect the camera’s trigger wire to this using a butt connector. The ILX-F309 will sense this 12V signal and automatically pop up the camera view.

Step 4: Securing and Testing Before Reassembly

Do not, I repeat, do not reassemble your car’s interior yet. With all connections made, turn your car’s ignition to the ON position (do not start the engine). The ILX-F309 should boot up. Put the transmission in reverse. The screen should automatically switch to the camera view. Check for a clear, stable picture. Look for lines, static, or a completely black screen. If it works, wiggle the cables you just connected at the head unit and along the route. If the picture flickers, you have a loose connection—find and fix it now. Once the test is perfect, carefully reassemble all the trim pieces you removed. Take your time to ensure they all clip back in properly without cracks or gaps.

Connecting Wireless Cameras: A Modern Approach

If the thought of running a cable from bumper to dash makes you sweat, Alpine’s wireless camera kits are a fantastic alternative. The setup philosophy is different: you’re setting up a tiny radio link.

Components: Transmitter, Receiver, and Pairing

A typical Alpine wireless kit has two main parts. The transmitter is a small box that mounts in the rear, usually near the license plate. It gets its power from the reverse light circuit (just like a wired camera’s power) and wirelessly sends the video signal. The receiver is a small dongle that plugs directly into the yellow CAMERA input on the back of your ILX-F309. The two devices need to be paired. This is usually a simple process involving pressing a pairing button on both units within a short time window (often 10-15 seconds). Refer to your specific camera’s manual, as the exact procedure varies by model. The receiver will have a status light that changes color or pattern when pairing is successful.

Installation Differences: Less Cable, More Care

The installation is far simpler. You mount the camera and the transmitter bracket in the rear. You only need to run a single power/ground wire pair from the transmitter back to the reverse light circuit and a good ground point in the trunk. There is no long video cable to route through the car. This is the biggest advantage. However, you must be mindful of the transmitter’s antenna. Most have a small external antenna wire. Mount the transmitter so this antenna has a clear path, not buried behind metal or dense plastic. Try to keep it pointing generally toward the front of the vehicle where the receiver will be.

Potential Pitfalls: Signal and Interference

Wireless is great, but it’s not magic. The 2.4GHz or 5GHz signal can be interfered with by other devices (some dash cams, faulty alternators, even certain types of LED lighting). If you see a snowy, glitchy, or freezing picture, interference is the likely culprit. Try relocating the transmitter’s antenna. Ensure the receiver is fully inserted into the ILX-F309’s port. In rare cases, the vehicle’s metal body can create a Faraday cage effect, weakening the signal. This is more common in larger vehicles like vans or SUVs. If problems persist, a wired connection remains the fallback for guaranteed performance.

Configuring Camera Settings on the ILX-F309

The physical connection is only half the battle. If you don’t tell the Alpine ILX-F309 about your new camera, it won’t know what to do with the signal it’s receiving. This is where the on-screen menus come in.

Accessing the Camera Setup Menu

With the car on and the head unit active, press the HOME button (the house icon). Go to Settings (the gear icon). Scroll down to find the Camera or Rear View Camera setting. Enter this menu. Here you will find several critical options.

Essential Settings to Adjust

• Camera Input: Set this to ON or Wired (if you used a wired camera). For a wireless Alpine kit, it may default to a wireless mode or require a specific “Wireless Camera” option to be selected. Consult your camera’s manual.
• Camera Type: You’ll likely need to select NTSC. This is the standard video format for North American cameras. PAL is used in Europe/Asia. Selecting the wrong one gives a rolling, distorted picture.
• Guideline Settings: The ILX-F309 can display dynamic parking guidelines (colored lines that bend as you turn the wheel). You must enable this and often calibrate it. The calibration process usually involves measuring the distance from your camera to the ground and inputting that value. Follow the on-screen prompts precisely. These guidelines are a fantastic tool for judging distance.
• Trigger Source: If you are using the reverse light trigger, this should be set to Reverse Gear. If you’ve wired a front camera to the camera input and want it triggered by a switch, you might set this to Always On or a different source, but that’s more advanced.

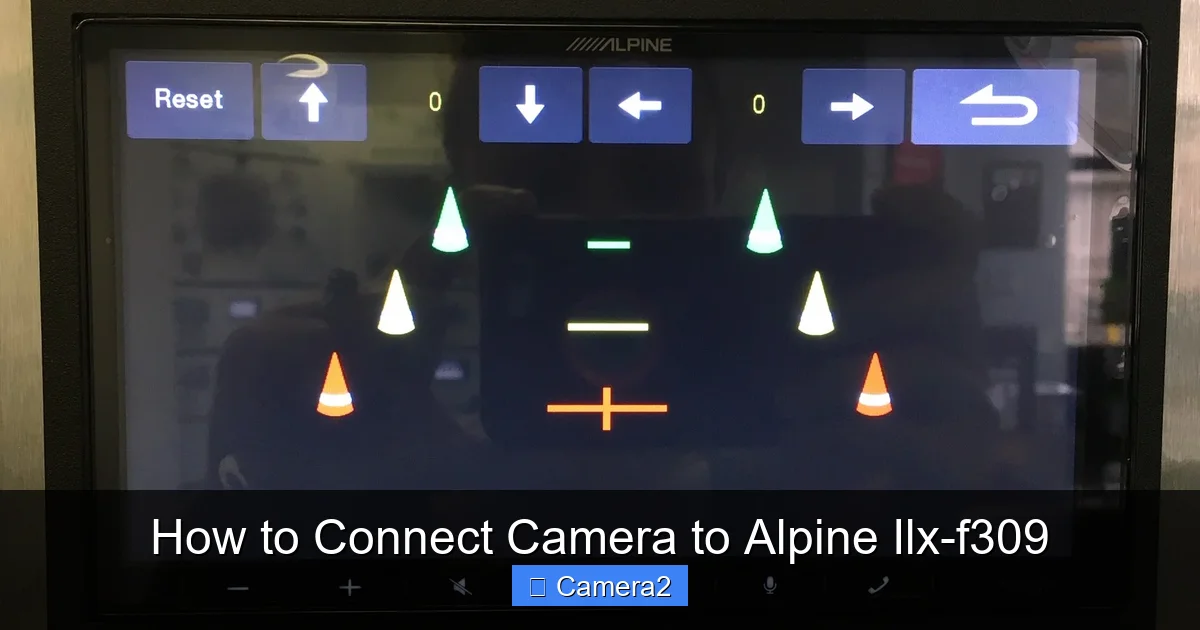

Calibrating for Accuracy

That guideline calibration is important. An inaccurate guideline is worse than none at all, as it gives you false confidence. The ILX-F309 will ask you to measure the height of your camera lens from the ground and the horizontal distance from the camera to the center of the rear axle (or a similar reference point). Use a tape measure. Be as precise as you can. Enter these numbers. The system will then calculate the correct perspective for the guidelines. You can usually test this by putting a cone or box a known distance behind the car and seeing if the guideline lines up correctly with it.

Troubleshooting Common Connection Issues

Even with careful work, things can go wrong. Let’s diagnose the most common symptoms.

“No Signal” or Black Screen

This is the most frequent issue. Start with the basics. Is the head unit on? Is the camera getting power? Check your fuse for the camera power circuit. Use a multimeter at the camera’s power wire connector (with the car in reverse) to verify you have 12V. If no power, trace back to your fuse tap or power source connection. If you have power, check the ground connection—a bad ground will prevent the circuit from completing. Next, ensure the yellow RCA plug is fully seated in the ILX-F309’s port. Finally, confirm in the head unit’s settings that the camera input is enabled and the correct type (NTSC) is selected.

Fuzzy, Snowy, or Static-Filled Picture

A poor-quality picture usually points to a bad connection or interference. For wired systems, this often means the RCA video cable is damaged, poorly shielded, or running too close to high-power wires (like the ignition coil or fuel pump wires). Reroute the video cable away from any sources of electrical noise. Make sure all connections—especially the RCA plug—are clean and tight. For wireless systems, this is classic interference. Try changing the channel on your wireless kit if it has that option (some do). Ensure the transmitter and receiver antennas are as far apart from other electronics as possible. A faulty transmitter or receiver could also be the culprit.

Picture is On, But Guidelines are Missing or Wrong

First, go back into the Camera settings menu and ensure the Guidelines option is turned ON. If they are on but look strange, you need to recalibrate. Enter the calibration menu and re-enter your camera height and distance measurements. Double-check your math. If the guidelines still don’t track correctly with steering input, the head unit’s internal sensor for steering angle might not be communicating properly, but this is rare. More likely, a measurement was entered incorrectly.

Pro Tips for Optimal Camera Performance and Safety

You’ve got it working. Now let’s make it excellent and ensure it lasts.

Weatherproofing is Non-Negotiable

Any connection you make outside the dry cabin of your car must be weatherproof. This includes the camera’s power connections in the trunk and any splices you made in the engine bay (if you ran power from there). Use heat-shrink tubing with adhesive lining over butt connectors. Seal any holes you drill in the vehicle’s firewall or panels with silicone caulk or rubber grommets. A single drop of water in a connector can cause a short, blowing fuses and potentially damaging the ILX-F309. It’s worth the extra 15 minutes of work.

Signal Cleanliness: Keep Video and Power Separated

When running your long camera cable, try to keep the video core (the center conductor of the RCA) and the power/ground wires separated within their sheath. More importantly, keep the entire cable bundle away from the vehicle’s main power wires (the thick red wires from the battery to the starter and fuse box). Running parallel to these can induce a nasty whine or buzz into your video signal—a ground loop. If you must cross power wires, do so at a 90-degree angle. Using a higher-quality, double-shielded RCA cable can also help immensely.

The Final Check: A Pre-Drive Ritual

Before you consider the job done, perform a final check with the car on the ground. With the engine running, have a helper stand behind the car at various distances (3 feet, 6 feet, 10 feet). Shift into reverse. Confirm the picture is stable, clear, and the guidelines (if used) are accurate. Then, have the helper walk from side to side behind the car to check for any blind spots in the camera’s field of view. Finally, drive the car slowly in a large, empty parking lot. Use the camera to back into a space. Does the view feel natural? Are the guidelines helpful? This live test is the ultimate validation of your hard work.

Conclusion: Your Safer, Smarter Drive Awaits

Connecting a camera to your Alpine ILX-F309 is a project that pays dividends every single time you get behind the wheel. It bridges the gap between modern infotainment and practical, everyday utility. Whether you chose the bulletproof reliability of a wired connection or the installation ease of a wireless Alpine kit, the process follows a logical path: plan, prepare, connect physically, configure digitally, and test thoroughly. The most important lessons are about patience and precision. Taking the time to route cables neatly, make soldered or crimped connections that will last a decade, and carefully calibrate your on-screen guidelines transforms a simple add-on into a seamless, professional-grade feature.

Remember, your safety is the ultimate goal. A poorly installed camera that gives a false sense of security or one that fails at a critical moment is worse than no camera at all. So respect the process. Use the right tools. Double-check every connection. And when you’re done, take a moment to appreciate the new perspective you’ve added to your vehicle. That clear, bright image on your Alpine’s large screen isn’t just a video feed—it’s peace of mind, made by your own hands. Now, go enjoy the view from the driver’s seat, with a little extra help seeing what’s behind you.

Frequently Asked Questions

Can I connect any aftermarket camera to the Alpine ILX-F309?

You can connect any standard wired analog camera (with an RCA plug) to the ILX-F309’s dedicated camera input. For wireless, you must use an Alpine-branded wireless camera kit that is specifically compatible with the ILX-F309, as it uses a proprietary wireless protocol.

My camera is connected, but the screen never switches to it when I shift into reverse. What’s wrong?

First, confirm the camera is receiving power (the camera’s light should be on). Next, check that the camera’s reverse trigger wire is correctly connected to your vehicle’s reverse light circuit. Finally, ensure the “Camera Input” and “Trigger Source” settings in the ILX-F309’s menu are set correctly (usually to “Wired” and “Reverse Gear”).

Is there any way to use the camera while driving forward, not just in reverse?

Yes. You can set the camera trigger source to “Always On” in the ILX-F309’s settings, which allows you to manually toggle the camera view using the head unit’s touchscreen. For a front camera, you would wire it to the camera input and use a separate dash-mounted switch to activate it, as the ILX-F309 does not natively support automatic front camera activation.

The wireless camera picture is glitchy or has static. How can I fix this?

Wireless interference is the most common cause. Ensure the transmitter’s antenna is mounted with a clear path to the front of the vehicle, away from large metal obstructions. Try to keep the transmitter away from other wireless devices. If possible, switch the wireless channel if your kit supports it. If problems persist, a wired connection is the most reliable solution.

Can I install the camera myself if I have no experience with car electronics?

Yes, if you are meticulous and patient. The wired installation requires running a cable through your car, which is the most challenging part. You’ll need basic tools and a willingness to learn. If you are uncomfortable with any step—especially drilling holes or finding correct wires—it’s highly recommended to seek professional installation to avoid damage to your vehicle.

What safety precautions should I take during installation?

Always disconnect the vehicle’s negative battery terminal before touching any wiring to prevent shorts. Use a fuse on any new power connections. Route cables away from hot engine parts, exhaust systems, and moving components like pedals or seat tracks. Securely fasten all cables with zip ties to prevent them from dangling or getting caught. Ensure your final camera mount is extremely secure to withstand car washes and highway vibration.
