Installing a Pioneer reverse camera doesn’t have to be a headache. This guide walks you through the wiring diagram, shows where each wire belongs, and gives practical tips to avoid common mistakes. Follow the simple steps and enjoy a clear rear‑view image the next time you reverse.
Key Takeaways
- Understand the color‑code: Pioneer cameras use standard red, black, yellow, and white wires for power, ground, video, and illumination.
- Choose the right source: Connect the video line to an RCA input on a compatible head‑unit or aftermarket monitor.
- Ground properly: A solid chassis ground prevents flicker and ghost images.
- Use a fuse: Protect the camera and wiring with a 5 A inline fuse near the power source.
- Test before final install: Verify image and illumination before routing wires through the vehicle.
- Common troubleshooting: Check for loose connections, blown fuses, or a bad video cable if the picture is fuzzy.
- Safety first: Disconnect the battery before cutting or stripping wires to avoid shorts.
📑 Table of Contents
Introduction: Why a Pioneer Reverse Camera?
Backing up a vehicle can be stressful, especially in tight parking spots or crowded streets. A reverse camera gives you a clear view of what’s behind, reducing the chance of bumps, scratches, or worse. Pioneer, a trusted name in car audio and video, offers reverse cameras that pair seamlessly with many of their head‑units. The real magic, however, happens when the camera is wired correctly. A clean, reliable connection means a crisp image, proper illumination, and peace of mind every time you shift into reverse.
In this article we’ll break down the Pioneer reverse camera wiring diagram, explain each wire’s purpose, and walk you through a full installation—from planning the route to testing the final setup. Whether you’re a DIY enthusiast or a first‑time installer, the step‑by‑step approach will keep the process simple and error‑free.
1. Getting to Know Your Pioneer Reverse Camera
1.1 What Comes in the Box?
Typical Pioneer reverse camera kits include:
Visual guide about Pioneer Reverse Camera Wiring Diagram
Image source: guji.atimebook.com
- Camera unit with four wires (red, black, yellow, white)
- Mounting bracket or suction cup
- RCA video cable (usually 4 ft to 8 ft)
- Power fuse holder and 5 A fuse
- Installation manual with a wiring diagram
1.2 The Four Core Wires
Understanding the color code is the first step to a successful install:
- Red: Constant 12 V power (often called “+12 V”). Some models use this for the camera’s LED ring.
- Black: Ground (chassis ground). Must be attached to a clean, unpainted metal surface.
- Yellow: Video signal (RCA). Carries the live image to the head‑unit.
- White (or sometimes blue): Illumination trigger. Sends a 12 V signal when the car is in reverse.
2. Preparing for Installation
2.1 Tools You’ll Need
Gather the following before you start:
- Wire strippers and crimpers
- Electrical tape or heat‑shrink tubing
- Screwdrivers (Phillips and flat‑head)
- Multimeter (to verify voltage and continuity)
- Drill with appropriate bits (if you need to route wires through the firewall)
- Inline fuse holder and 5 A fuse
2.2 Safety First
Always disconnect the negative battery terminal before cutting, stripping, or splicing any wires. This prevents accidental shorts that could damage the vehicle’s electronics or your new camera.
2.3 Planning the Wire Route
Most installers run the power and ground wires from the rear of the vehicle to the front via the trunk or the interior trim. The video cable typically follows the same path but stays separate from power lines to avoid interference. Use existing wiring harnesses where possible; they provide protective sleeves and keep the look tidy.
3. Reading the Pioneer Reverse Camera Wiring Diagram
3.1 Diagram Overview
The official diagram looks simple: a block representing the camera with four lines pointing to labeled connectors—Red (+12 V), Black (Ground), Yellow (Video), White (Reverse Trigger). Each line then branches to the corresponding vehicle source:

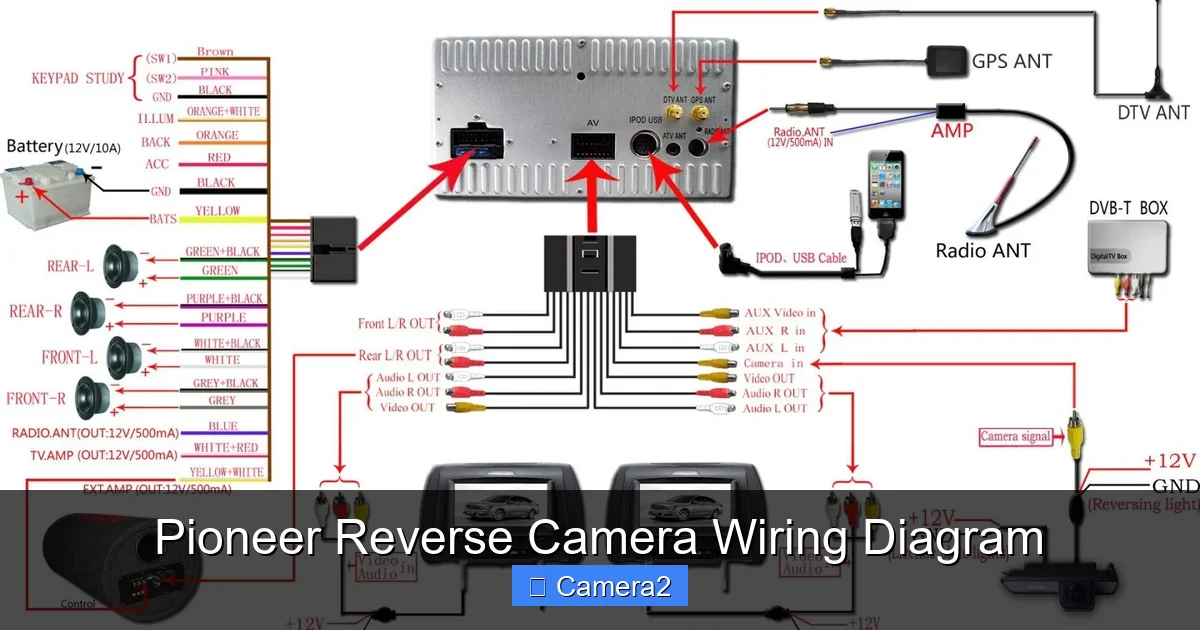

Visual guide about Pioneer Reverse Camera Wiring Diagram
Image source: i.pinimg.com
- Red → Fuse‑protected 12 V source (often the reverse light circuit)
- Black → Chassis ground bolt
- Yellow → RCA video input on the Pioneer head‑unit
- White → Reverse gear signal (usually the same wire that powers the reverse lights)
3.2 Matching Diagram to Your Vehicle
Locate the reverse light wire in your car’s wiring harness. It’s usually a brown or green wire that lights up when the transmission is in reverse. Tap into this wire for the white illumination trigger. If you can’t find it, use a multimeter to verify which wire gets 12 V only when you shift into reverse.
3.3 Adding a Fuse
Insert the 5 A inline fuse on the red power wire, as close to the battery as possible. This protects both the camera and the vehicle’s electrical system from overloads.
4. Step‑by‑Step Installation Guide
4.1 Mount the Camera
Choose a location on the rear bumper or license‑plate area where the lens has an unobstructed view. Clean the surface, then either:
- Attach the suction‑cup mount (ideal for temporary installs)
- Secure the bracket with screws or self‑tapping bolts for a permanent fit.
4.2 Run the Power and Ground Wires
1. Strip ¼ in. of insulation from the red and black wires.
2. Connect the red wire to the fused 12 V source using a crimp connector.
3. Crimp the black wire to a clean chassis ground bolt.
4. Route both wires through the vehicle’s interior, securing them with zip ties to prevent rattling.
4.3 Connect the Video Cable
1. Plug the yellow video wire into the RCA video input on the Pioneer head‑unit.
2. If your head‑unit uses a dedicated “Rear Camera” input, use that port for the best image quality.
3. Run the video cable alongside the power wires but keep at least 1 in. separation to reduce electromagnetic interference.
4.4 Wire the Reverse Trigger (White)
1. Locate the reverse light wire in the trunk or under‑dash harness.
2. Strip the end and splice the white camera wire using a T‑tap connector.
3. Verify with a multimeter that the white wire receives 12 V only when the gear selector is in reverse.
4.5 Final Checks and Testing
1. Reconnect the battery’s negative terminal.
2. Turn the ignition on and shift into reverse. The camera’s LED ring should light, and the image should appear on the head‑unit screen.
3. If the picture is black or flickering, double‑check all connections, especially the ground and video cable.
5. Troubleshooting Common Issues
5.1 No Image on the Screen
- Check that the RCA cable is fully seated in both the camera and head‑unit.
- Confirm the video input on the head‑unit is set to “Camera” mode (some units have a menu setting).
- Verify the camera is receiving power (red wire should show ~12 V).
5.2 Flickering or Distorted Picture
- Ensure the video cable is not running parallel to the power wires for long distances.
- Replace the RCA cable if it appears damaged.
- Check the ground connection; a poor chassis ground often causes interference.
5.3 Camera LEDs Not Lighting
- Measure voltage on the white wire while in reverse; it should be 12 V.
- If the voltage is missing, trace back to the reverse light circuit and confirm the source wire is active.
- Make sure the inline fuse on the red wire is not blown.
6. Tips for a Professional Finish
6.1 Hide the Wires
Use existing grommets or drill new ones to pass wires through the firewall. Cover any exposed metal with grommet sleeves to protect against chafing.
6.2 Use Heat‑Shrink Tubing
After crimping connections, slide heat‑shrink tubing over the joint and apply heat. This adds a waterproof seal and a clean look.
6.3 Keep a Spare Fuse
Store a spare 5 A fuse in your glove box. If the camera suddenly goes dark, a quick fuse swap can save a day.
6.4 Document Your Work
Take photos of each connection before sealing everything up. This makes future troubleshooting or removal much easier.
Conclusion
The Pioneer reverse camera wiring diagram may look intimidating at first glance, but once you understand the four basic wires and follow a logical installation path, the process is straightforward. By preparing your tools, planning the wire route, and testing each step, you’ll end up with a reliable backup camera that integrates perfectly with your Pioneer head‑unit. Remember to always protect the circuit with a fuse, secure a solid ground, and keep the video cable away from power lines. With these best practices, you’ll enjoy a clear rear view every time you reverse, making parking and maneuvering safer for you and everyone around you.
Frequently Asked Questions
How do I know which wire is the reverse trigger on a Pioneer camera?
The reverse trigger is usually the white (or sometimes blue) wire. It should be connected to the vehicle’s reverse‑light circuit, which receives 12 V only when the gear selector is in reverse.
Can I use a different head‑unit than Pioneer with this camera?
Yes, as long as the head‑unit has an RCA video input that can accept a composite signal. Some aftermarket monitors may require an adapter, but the wiring stays the same.
Do I need a separate power source for the camera’s LED lights?
Most Pioneer cameras draw power for the LEDs from the same 12 V source used for the camera itself (the red wire). Adding a fuse ensures the circuit is protected.
What should I do if the camera image is black but the LEDs work?
Check the yellow video cable connection and ensure it’s plugged into the correct RCA input. Also verify that the head‑unit’s video mode is set to “Camera.”
Is it safe to run the camera wires through the vehicle’s firewall?
Yes, but use a proper grommet to protect the wires from sharp edges. Keep the wires away from high‑current power cables to avoid interference.
Where can I find more tips on wiring car accessories?
Our guide on how to disable driver facing camera offers additional wiring safety advice and troubleshooting steps for in‑vehicle video systems.
