Adding a backup camera to your skid steer dramatically improves safety and efficiency on the job site. This guide walks you through the key features to look for, step‑by‑step installation tips, and maintenance tricks so you can see obstacles before they become problems. Whether you’re a seasoned operator or a new owner, you’ll find everything you need to get the most out of a rear‑view camera.
Key Takeaways
- Enhanced safety: A backup camera reduces blind‑spot accidents by up to 70%.
- Choose the right specs: Look for at least 120° view, night‑vision IR LEDs, and a weather‑proof rating.
- Simple wiring: Most skid steer cameras connect to a 12 V power source and a monitor via a single cable.
- Mounting matters: Position the camera high on the rear bumper for a clear, unobstructed view.
- Maintenance tips: Keep the lens clean, check connections monthly, and replace faulty IR LEDs promptly.
- Integration options: You can pair the camera with a dedicated monitor or use an existing display.
- Cost vs. benefit: Even budget‑friendly models deliver safety gains that outweigh the price.
📑 Table of Contents
Why Every Skid Steer Needs a Backup Camera
Skid steers are compact, powerful machines that excel in tight spaces. Their design, however, creates a large blind spot directly behind the operator. When you’re moving material, aligning loads, or working near walls, a hidden obstacle can cause costly damage or injury.
Adding a backup camera gives you a live video feed of what’s behind the machine. This simple visual aid helps you:
- Spot people, tools, or debris before you reverse.
- Align loads more precisely, reducing the need for trial‑and‑error.
- Comply with workplace safety standards that increasingly recommend rear‑view systems.
Think of it as an extra pair of eyes that never gets tired.
Key Features to Look For
Field of View (FOV)
A wide field of view is essential. Look for cameras offering at least 120° horizontal coverage. This angle captures the entire rear of the skid steer, minimizing blind spots.

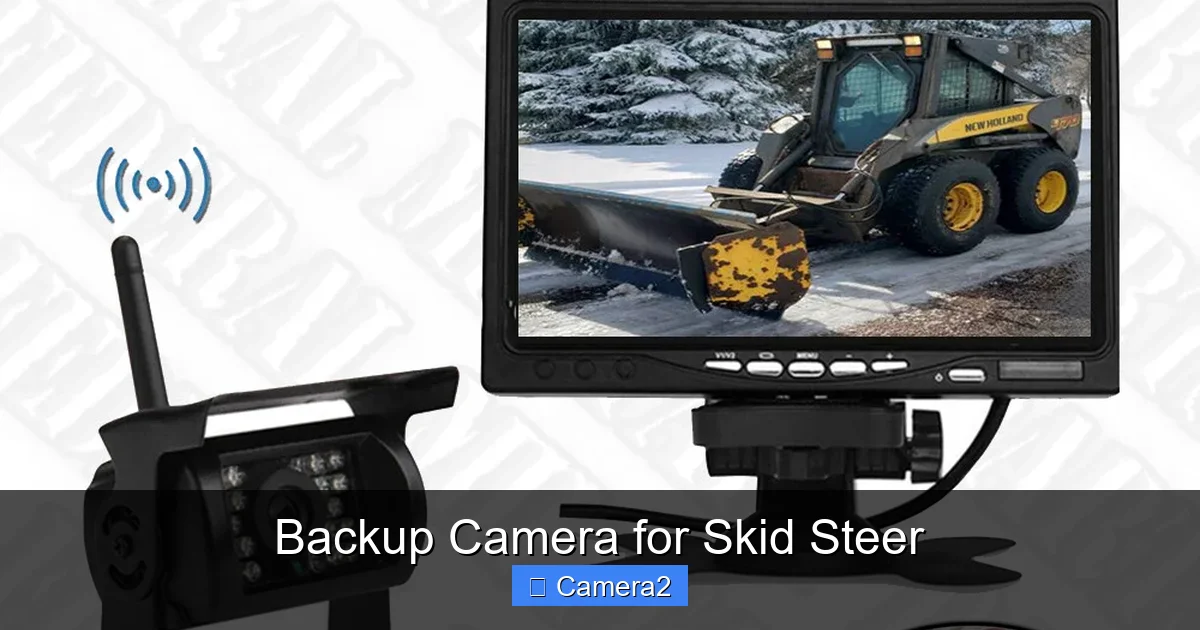

Visual guide about Backup Camera for Skid Steer
Image source: i.ebayimg.com
Night Vision
Many job sites operate after dark or in low‑light conditions. Infrared (IR) LEDs provide black‑and‑white night vision up to 30 feet. Ensure the camera’s IR range matches your typical work environment.
Durability
Skid steers endure dust, mud, rain, and occasional impacts. Choose a camera with an IP‑rating of IP66 or higher for water and dust resistance. A rugged housing protects the lens from scratches.
Resolution
While 720p is adequate for most tasks, a 1080p camera gives sharper images, making it easier to identify small objects. Higher resolution also improves the image on larger monitors.
Mounting Options
Most cameras come with a universal mounting bracket that bolts onto the rear bumper. Some models include a magnetic base for quick, tool‑free installation. Make sure the mounting system fits the specific make and model of your skid steer.
Power and Wiring
Skid steers use a 12 V DC electrical system. A camera that draws less than 2 A will not strain the machine’s battery. Look for a kit that includes a weather‑proof connector and a single‑cable solution that carries both power and video signals.
Top Backup Camera Models for Skid Steers
Below are three popular choices that balance price, performance, and durability.

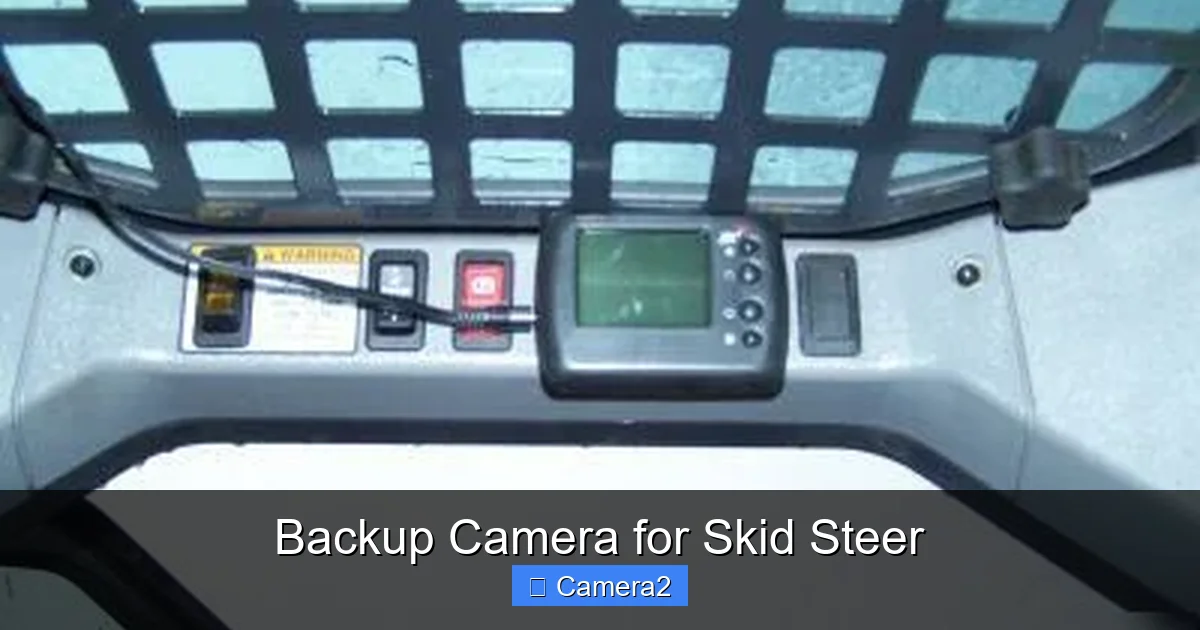

Visual guide about Backup Camera for Skid Steer
Image source: chicagopartsnetwork.com
1. RuggedPro 1080p HD Camera
- Resolution: 1920 × 1080 px
- FOV: 130°
- Night Vision: 30 ft IR LEDs
- IP Rating: IP67
- Mount: Heavy‑duty stainless steel bracket
This camera is ideal for contractors who need crystal‑clear images in harsh conditions. The built‑in heater prevents fogging in cold weather.
2. BudgetGuard 720p Camera Kit
- Resolution: 1280 × 720 px
- FOV: 120°
- Night Vision: 20 ft IR LEDs
- IP Rating: IP66
- Mount: Quick‑release magnetic base
For owners on a tighter budget, BudgetGuard delivers reliable performance without breaking the bank. The magnetic mount makes removal easy for seasonal maintenance.
3. ProVision Dual‑Camera System
- Resolution: 1080p (each camera)
- FOV: 115° per camera (wide + narrow view)
- Night Vision: Dual‑range IR (15 ft & 30 ft)
- IP Rating: IP68
- Mount: Adjustable dual‑bracket
For heavy‑duty operators, the dual‑camera system offers a standard wide view plus a zoomed‑in narrow view for precise maneuvering.
Step‑by‑Step Installation Guide
What You’ll Need
- Backup camera kit (camera, monitor, wiring harness)
- Drill with appropriate bits
- Wrenches or socket set
- Electrical tape and zip ties
- Wire stripper/crimper
- Silicone sealant (optional for extra waterproofing)
Step 1: Choose the Mounting Location
Position the camera near the center of the rear bumper, high enough to see over any attached accessories. Measure the distance to ensure the cable will reach the operator’s cab without stretching.

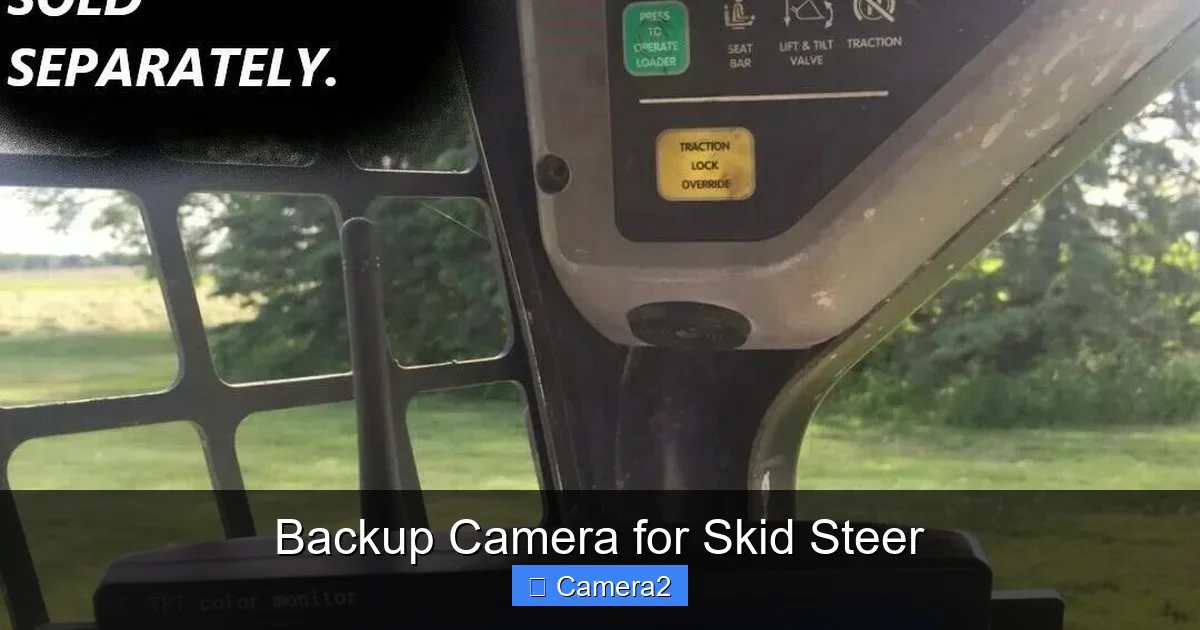

Visual guide about Backup Camera for Skid Steer
Image source: twentywheels.com
Step 2: Prepare the Surface
Clean the mounting area with a degreaser. If you’re drilling holes, mark the bolt locations and double‑check alignment.
Step 3: Install the Camera
Secure the bracket with bolts or use the magnetic base. Feed the camera’s cable through the bumper’s existing grommet or seal a new hole with silicone to keep water out.
Step 4: Run the Wiring
Connect the camera’s power wire to a 12 V source that is active when the machine is in reverse. Many skid steers have a reverse‑light circuit you can tap into. Use a fuse (5 A) for protection.
Run the video cable to the monitor location—usually the operator’s console. Keep the cable away from moving parts and secure it with zip ties.
Step 5: Connect the Monitor
If you already have a monitor for rear view camera installed on another piece of equipment, you can reuse it. Otherwise, mount the supplied monitor in a position that doesn’t obstruct the control panel.
Step 6: Test the System
Turn on the skid steer and engage reverse. The camera feed should appear instantly on the monitor. Check for any lag, distortion, or blind spots. Adjust the camera angle if needed.
Step 7: Secure and Seal
Once everything works, tighten all bolts, apply silicone sealant around the cable entry point, and tidy up excess wiring.
Maintenance and Troubleshooting
Regular Cleaning
Dust and mud can obscure the lens. Wipe the camera with a soft, damp cloth weekly. Avoid abrasive cleaners that could scratch the protective coating.
Inspect Wiring
Check connectors for corrosion every month. Loose or frayed wires cause intermittent video loss. If you notice a flickering image, reseat the connectors and tighten any loose clamps.
Replacing IR LEDs
Over time, IR LEDs may dim. Most cameras allow easy LED replacement—unscrew the front housing, swap the LED module, and reassemble.
Common Issues
- No video feed: Verify the camera receives 12 V power and the monitor is set to the correct input.
- Image is blurry: Clean the lens and adjust the focus ring if the camera has one.
- Screen freezes: Check for a loose video cable or a failing monitor; try a different monitor to isolate the problem.
Choosing the Right Display
While some operators install a dedicated monitor, others integrate the camera feed into an existing screen. A dedicated 7‑inch LCD provides a clear view without clutter. If you already own a license plate with backup camera system for a truck, you can often repurpose the same monitor for your skid steer, saving cost and space.
When selecting a monitor, consider:
- Brightness: At least 300 nits for outdoor visibility.
- Resolution: Match or exceed the camera’s resolution.
- Mounting: VESA‑compatible brackets make installation simple.
- Power: Some monitors can draw power directly from the camera’s cable, reducing wiring.
Cost vs. Benefit Analysis
The price of a backup camera system for a skid steer ranges from $80 for a basic kit to $300 for a premium dual‑camera setup. While the upfront cost may seem modest, the benefits are substantial:
- Reduced accidents: Fewer collisions mean lower repair bills.
- Improved productivity: Operators can reverse confidently, cutting down on time spent repositioning.
- Insurance savings: Some insurers offer discounts for equipment equipped with safety cameras.
- Compliance: Demonstrating proactive safety measures can satisfy client requirements.
In most cases, the ROI (return on investment) is realized within a few weeks of operation.
Real‑World Examples
Construction Site
At a downtown redevelopment project, a crew added a RuggedPro camera to their skid steer. Within the first month, they reported a 60% drop in near‑miss incidents, and the foreman praised the clear night‑vision when working on a dimly lit evening shift.
Landscaping Business
A landscaping company equipped its fleet of skid steers with BudgetGuard kits. The magnetic mounts allowed quick removal for winter storage, and the low cost enabled the owner to outfit every machine without stretching the budget.
Future Trends in Skid Steer Vision Systems
Technology continues to evolve. Upcoming features include:
- Wireless transmission: Cameras that send video to a tablet or smartphone via Wi‑Fi, eliminating cables.
- AI‑assisted alerts: Systems that detect moving objects and sound an audible warning.
- Integration with telematics: Video feeds stored in the machine’s data log for post‑job review.
While these innovations are still emerging, even today’s basic camera kits provide a solid safety foundation.
Conclusion
Investing in a backup camera for your skid steer is a smart move that pays off quickly. By choosing a camera with the right field of view, night‑vision capability, and rugged housing, you’ll gain a clear picture of what’s behind the machine. Installation is straightforward—most kits can be mounted with basic tools, and routine maintenance keeps the system reliable.
Whether you opt for a budget-friendly magnetic model or a high‑end dual‑camera system, the added safety, efficiency, and peace of mind are worth every penny. Equip your skid steer today and watch your productivity—and confidence—grow.
Frequently Asked Questions
How do I know which camera size fits my skid steer?
Measure the width of the rear bumper and check the camera’s mounting bracket dimensions. Most universal kits fit standard bumpers, but a quick size check prevents mismatches.
Can I use a backup camera from a pickup truck on my skid steer?
Yes, many pickup truck cameras are compatible if they meet the voltage and mounting requirements. See our guide on backup cameras for pickup trucks for more details.
Do I need a separate monitor for the camera?
A dedicated monitor provides the clearest view, but you can also use an existing screen if it has a compatible video input. Check the monitor’s specs for resolution and input type.
How often should I clean the camera lens?
Clean the lens weekly, or after each job that generates a lot of dust or mud. Use a soft, damp cloth and avoid harsh chemicals.
What should I do if the video feed is lagging?
Lag is often caused by a loose video cable or a low‑quality monitor. Re‑secure the cable, check for damage, and consider upgrading to a higher‑grade monitor.
Is it legal to install a backup camera on a skid steer?
There are no federal mandates for skid steers, but many workplaces require visual aids for safety. Installing a camera can help you meet those internal safety policies.
