Wiring Diagram for Ceiling Speakers

Installing ceiling speakers doesn’t have to be a mystery. This guide walks you through reading a wiring diagram for ceiling speakers, choosing the right wiring method, and avoiding common pitfalls. Follow the simple steps and enjoy crystal‑clear sound from the ceiling.

Key Takeaways

• Understand the basics: Learn the symbols and connections that make up a wiring diagram for ceiling speakers.
• Choose the right wire gauge: Proper gauge prevents signal loss and protects your amp.
• Wire in series or parallel: Know when each method is best for impedance matching.
• Safety first: Always turn off power and follow local electrical codes.
• Test before you finish: Verify polarity and continuity to avoid silent or distorted speakers.
• Future‑proof your install: Leave spare conductors for upgrades or additional speakers.
• Use proper tools: Wire strippers, a multimeter, and a good quality speaker‑wire make the job painless.

Introduction: Why a Clear Wiring Diagram Matters

Imagine you’re listening to your favorite playlist and the sound comes out of nowhere—literally—from the ceiling. That’s the magic of ceiling speakers. But the magic only works when the wires are connected correctly. A wiring diagram for ceiling speakers is the blueprint that tells you exactly where each wire goes, what polarity to use, and how to match the speaker’s impedance with your amplifier.

Most DIYers feel intimidated by the “spaghetti” of wires behind a drop ceiling. The truth is, once you understand the basic symbols and follow a logical plan, the process is as easy as hanging a picture frame. This article breaks everything down into bite‑size steps, practical examples, and handy tips so you can finish the job with confidence.

1. Decoding the Symbols in a Wiring Diagram

Common symbols you’ll see

Every wiring diagram for ceiling speakers uses a set of standard icons. Here’s a quick cheat‑sheet:

• Speaker symbol (🗣️): Represents the actual speaker driver.
• + (positive) and – (negative) signs: Show polarity. Keeping the same polarity on all speakers preserves phase.
• Impedance value (Ω): Usually 4 Ω, 6 Ω, or 8 Ω. Important for matching to your amp.
• Wire gauge (AWG): Indicates thickness; 16‑18 AWG is typical for most home installs.
• Series vs. parallel lines: Parallel lines mean the wires join together; a single line with a “+” or “–” indicates series.

Reading a simple two‑speaker diagram

Picture a diagram that shows two ceiling speakers connected to a single amp. The amp’s “L” (left) and “R” (right) outputs each split into two wires—one positive (red) and one negative (black). Those wires travel to each speaker, maintaining the same color code. If the diagram shows a parallel connection, the two speakers share the same positive and negative wires, which keeps the overall load at a safe impedance.

2. Choosing the Right Wire and Tools

Wire gauge matters

Using the wrong gauge can cause voltage drop, overheating, or a weak signal. Follow these rules:

• 16 AWG: Works for runs up to 50 ft with 8 Ω speakers.
• 14 AWG: Better for longer runs or when you wire multiple speakers in parallel.
• 12 AWG: Reserved for high‑power setups or when you plan to add subwoofers later.

Essential tools

Having the right tools speeds up the job and reduces mistakes:

• Wire strippers (2 mm–6 mm capacity)
• Digital multimeter (for continuity and polarity checks)
• Fish tape or a flexible pull‑wire for threading through ceilings
• Label maker or masking tape (to keep track of each wire)

3. Wiring Methods: Series vs. Parallel

Parallel wiring – the most common choice

Parallel wiring keeps the total impedance higher, which is safer for most amplifiers. The formula is simple: 1 ÷ (1/Ω₁ + 1/Ω₂ + …). For two 8 Ω speakers, the total load is 4 Ω—perfect for a typical home amp.

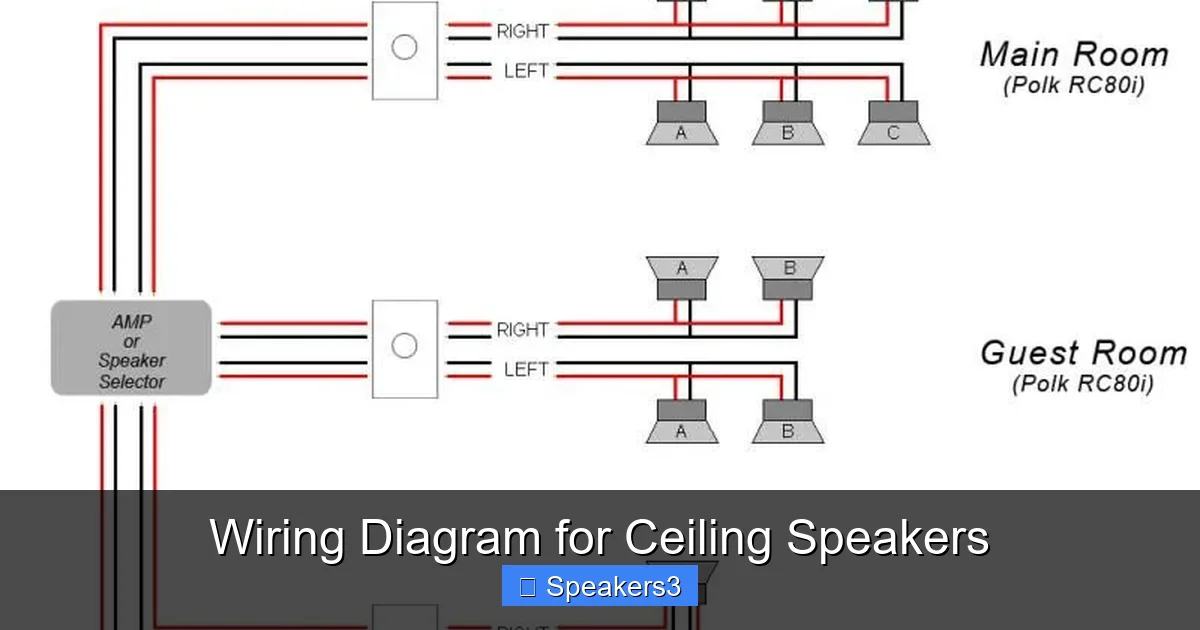

Example: You have a 2‑zone living‑room setup with four ceiling speakers (two per zone). Run a single pair of wires from the amp to each zone’s junction box, then split the wires to the two speakers in that zone. This keeps the wiring tidy and the load balanced.

Series wiring – when you need higher impedance

Series wiring adds the impedances together: 8 Ω + 8 Ω = 16 Ω. This is rarely needed unless your amp can’t handle low impedances. It can be useful in a vintage receiver that prefers 16 Ω loads.

Tip: If you ever need to switch between series and parallel, use a small “impedance selector” box. It’s a cheap, plug‑in solution that lets you experiment without rewiring.

4. Step‑by‑Step Installation Guide

Step 1: Plan your layout

Draw a quick sketch of the room, marking speaker locations, the amp, and any junction boxes. Use the wiring diagram for ceiling speakers as your reference. Decide whether each zone will be wired in parallel or series.

Step 2: Run the wire

Feed the chosen gauge wire through the ceiling cavity using fish tape. Keep the wire away from high‑voltage lines and HVAC ducts. If you’re installing new drywall, it’s easier to pull the wire before the ceiling tiles are in place.

Step 3: Connect the amp

At the amplifier, strip about ½ inch of insulation from each wire end. Connect the red (positive) to the amp’s “+” terminal and the black (negative) to the “–” terminal. Tighten the screws securely.

Step 4: Wire the speakers

Open the speaker’s mounting bracket. Usually there are two screw terminals: one marked “+” and the other “–”. Insert the corresponding wires, making sure the polarity matches the amp’s output. Use a small screwdriver to tighten the terminals.

Step 5: Test before you seal

Turn the amp on at low volume. Use a multimeter to check continuity from the amp to each speaker. Verify that the speaker’s cone moves outward when the “+” side receives a signal—this confirms correct polarity.

Step 6: Secure and finish

Clamp any loose wire with zip ties, label each run, and snap the ceiling tiles back into place. Finally, calibrate the amp’s bass, treble, and crossover settings to match your room’s acoustics.

5. Common Mistakes and How to Avoid Them

Mixing up polarity

If one speaker is wired opposite to the others, you’ll get phase cancellation—bass will sound thin or disappear. Always double‑check the “+” and “–” signs on both the amp and the speaker.

Incorrect impedance loading

Plugging two 8 Ω speakers in series into an amp rated for 8 Ω will make the load 16 Ω, resulting in low volume. Use the parallel method unless you know your amp can handle higher impedance.

Using undersized wire

Thin wire (22 AWG) may work for short runs but will overheat on longer distances. Stick to 16‑14 AWG for most home installations.

Neglecting local electrical codes

Some jurisdictions require speaker wiring to be run in conduit or to be rated for in‑wall use. Check your local code before you start. This not only keeps you legal but also prevents fire hazards.

6. Enhancing Your Ceiling Speaker System

Adding a crossover

If you pair your ceiling speakers with a subwoofer, a 3 way crossover for speakers can split the audio into low, mid, and high frequencies, delivering cleaner sound.

Using speaker stands for surround sound

Even though the speakers are in the ceiling, you might want additional height for a true surround setup. Check out speaker stands for surround speakers to understand how positioning affects the sound field.

Future‑proofing with spare conductors

When you run the main wire, pull an extra pair of conductors through the same path. They can be used later for adding a second zone, a powered subwoofer, or even a hidden in‑wall Bluetooth receiver.

Conclusion: From Diagram to Delightful Sound

Reading and applying a wiring diagram for ceiling speakers is not rocket science—it’s a matter of following symbols, choosing the right wire, and respecting polarity and impedance. By planning ahead, using proper tools, and testing each connection, you’ll turn a blank ceiling into a high‑fidelity soundscape. Whether you’re upgrading a home theater, adding background music to a kitchen, or building a whole‑house audio system, the steps above will guide you to a clean install and great listening experience.

Frequently Asked Questions

What does the “+” and “–” mean on a ceiling speaker wiring diagram?

They indicate the positive and negative terminals. Keeping the same polarity on all speakers ensures the sound waves stay in phase, preventing thin or canceled bass.

Can I use 22 AWG wire for ceiling speakers?

It’s possible for very short runs (<10 ft) and low‑power speakers, but 16‑14 AWG is recommended for most installations to avoid voltage drop and overheating.

Should I wire my ceiling speakers in series or parallel?

Parallel wiring is the most common because it keeps the total impedance low enough for typical home amplifiers. Series wiring is only needed when you need a higher impedance load.

Do I need a separate amp for ceiling speakers?

Most ceiling speakers are passive and require an external amplifier or AV receiver. Powered (active) ceiling speakers have built‑in amps and only need a line‑level source.

How can I test my wiring before closing the ceiling?

Turn the amp on at low volume, use a multimeter to check continuity, and watch the speaker cone move outward when the positive signal is applied. This confirms correct polarity and connectivity.

Is it safe to run speaker wire through existing electrical conduits?

Only if the conduit is rated for low‑voltage wiring and complies with local codes. Mixing high‑voltage and low‑voltage wires can cause interference and is often prohibited.
