Wiring 3 Speakers in Series Parallel

Wiring 3 speakers in series parallel lets you match speaker impedance to your amp while keeping volume balanced. This guide walks you through the theory, step‑by‑step wiring, and practical tips so you can enjoy clear, powerful audio without damaging equipment.

Key Takeaways

• Impedance matching: Series‑parallel wiring lets three 8 Ω speakers appear as a 4 Ω load on a typical 4‑Ω amp.
• Power distribution: Proper wiring splits power evenly, preventing one speaker from hogging the signal.
• Safety first: Always check amp ratings before connecting speakers in series parallel.
• Simple wiring diagram: A clear diagram reduces mistakes and speeds up installation.
• Flexibility: You can mix speaker sizes and types, but keep total impedance in mind.
• Testing tips: Use a multimeter to verify impedance and polarity before powering up.
• Upgrade paths: Adding a crossover or moving to a 3‑way system can further improve sound quality.

Introduction: Why Wire 3 Speakers in Series Parallel?

Imagine you have three bookshelf speakers you love, but your home‑theater receiver only supports a 4 Ω load. Connecting them all in series would give you 24 Ω—far too high—while a pure parallel hookup would drop you to about 2.7 Ω, which could overheat the amp. The sweet spot is a series‑parallel configuration, where you get the best of both worlds: a safe impedance and balanced sound.

In this article we’ll break down the math, show you a clear wiring diagram, and give you hands‑on tips so you can finish the job in an afternoon. Whether you’re a first‑time DIYer or a seasoned audiophile, the steps are easy to follow and the results are rewarding.

Understanding Impedance and How It Affects Your System

What Is Impedance?

Impedance (measured in ohms, Ω) is the resistance a speaker presents to an amplifier’s signal. Most amps are rated for 4 Ω or 8 Ω loads. If the load is too low, the amp works harder and can overheat. If it’s too high, you lose power and volume.

Series vs. Parallel Basics

In a series connection, impedances add up: Rtotal = R1 + R2 + R3. In parallel, the formula is 1/Rtotal = 1/R1 + 1/R2 + 1/R3. For three 8 Ω speakers:

• Series only: 8 Ω + 8 Ω + 8 Ω = **24 Ω** (too high).
• Parallel only: 1/8 + 1/8 + 1/8 = 3/8 → Rtotal ≈ **2.7 Ω** (too low).

A series‑parallel split—two speakers in series, then that pair in parallel with the third—gives you:

• Series pair = 16 Ω.
• Parallel with third 8 Ω: 1/16 + 1/8 = 3/16 → Rtotal ≈ **5.3 Ω**.

That 5.3 Ω load is safe for most modern amps and keeps the power distribution even. If you need a tighter 4 Ω match, you can use two 4 Ω speakers in series and parallel them with an 8 Ω speaker, or add a resistor network (outside the scope of this guide).

Step‑by‑Step Guide to Wiring 3 Speakers in Series Parallel

What You’ll Need

• Three speakers (same or mixed impedance, but know the values).
• Speaker wire (16‑18 AWG is fine for most home setups).
• Wire cutters/strippers.
• Multimeter (to verify continuity and impedance).
• Screwdriver (for binding posts).
• Optional: a 3‑way crossover if you want separate highs, mids, and lows.

Step 1: Plan Your Layout

Decide which two speakers will be wired in series. Often you’ll pick the two that sit closest together, such as left and right front speakers. The third speaker (center or rear) will be the parallel branch.

Step 2: Prepare the Wires

Cut three lengths of wire about 2‑3 feet longer than the distance between speakers. Strip about ½ inch of insulation from each end.

Step 3: Connect the Series Pair

1. Take Speaker A and connect its positive (+) terminal to the amplifier’s positive output.
2. Run a wire from Speaker A’s negative (–) terminal to Speaker B’s positive (+) terminal. This creates the series link.
3. Leave Speaker B’s negative (–) terminal open for now; it will become the series pair’s output.

Step 4: Add the Parallel Speaker

1. Connect a wire from the amplifier’s positive output (the same point you used for Speaker A) to the positive (+) terminal of Speaker C.
2. Connect another wire from Speaker B’s negative (–) terminal (the end of the series pair) to the negative (–) terminal of Speaker C.

Now you have two paths from the amp: one path goes through A → B (series), the other goes straight to C (parallel).

Step 5: Verify Connections

Use a multimeter set to “Ω” to measure the total load between the amp’s terminals. You should see a reading close to the expected series‑parallel value (≈5 Ω for three 8 Ω speakers). Also check continuity on each speaker to ensure no shorts.

Step 6: Power Up and Test

Turn the amp on at a low volume. Play a test tone and listen for balanced output. If one speaker is louder or sounds distorted, double‑check your wiring and polarity.

Practical Tips and Common Mistakes

Tip 1: Keep Polarity Consistent

Reversing the positive and negative on any speaker will cause phase cancellation, making the sound thin. Always mark the wires or use color‑coded cables (red for +, black for –).

Tip 2: Match Speaker Types When Possible

Mixing a tiny tweeter with a large woofer in the same series‑parallel branch can lead to uneven frequency response. If you need to combine different sizes, consider adding a 3 way crossover for speakers to direct the right frequencies to each driver.

Tip 3: Check Your Amplifier’s Power Rating

Even with the correct impedance, an under‑powered amp can clip and damage speakers. Make sure the amp’s RMS wattage exceeds the combined RMS rating of the three speakers.

Common Mistake: Forgetting the Ground Loop

If you hear a hum, you may have created a ground loop by connecting speaker wires to a grounded chassis. Use insulated wire and avoid running speaker cables alongside power cords.

Tip 4: Use a Small Resistor for Fine‑Tuning

If you find the series‑parallel load is slightly off (e.g., 5.3 Ω instead of 4 Ω), a 1‑Ω power resistor in series with the parallel speaker can bring the total down a notch. This is optional and usually unnecessary for modern amps.

Advanced Options: Going Beyond Basic Wiring

Adding a Crossover

When you wire three speakers that cover different frequency ranges, a crossover ensures each driver receives only the frequencies it can handle. A simple 2‑way crossover can be placed in the series branch, while the parallel speaker can act as a dedicated tweeter.

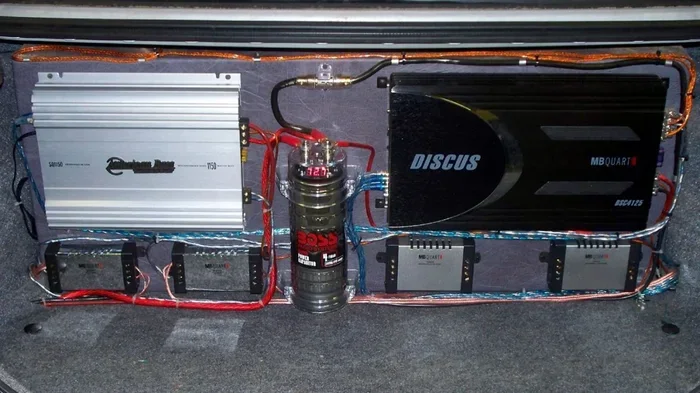

Series‑Parallel in Car Audio

Car installers often face similar impedance challenges. The same principles apply to a 6 3 4 car speakers setup, where space constraints make series‑parallel wiring a popular solution.

Scaling Up: More Than Three Speakers

If you later add a fourth speaker, you can create two series pairs and then wire those pairs in parallel. The math stays the same—just add the series totals before applying the parallel formula.

Safety Checklist Before You Hit Play

• Confirm all speaker impedances.
• Verify amp’s minimum and maximum load ratings.
• Check continuity and polarity with a multimeter.
• Start with low volume and increase gradually.
• Listen for distortion, hum, or one speaker being noticeably louder.

Conclusion: Enjoy Balanced, Powerful Sound

Wiring 3 speakers in series parallel is a simple yet powerful technique to match impedance, share power evenly, and protect your equipment. By following the step‑by‑step guide, double‑checking polarity, and testing with a multimeter, you can set up a clean, balanced audio system in under an hour. Whether you’re upgrading a home theater, a DIY bookshelf array, or a car audio rig, the series‑parallel method gives you flexibility without sacrificing performance.

Now that you know the basics, experiment with crossovers, different speaker combos, and even larger arrays. The sky’s the limit—just keep the math on your side and enjoy the music!

Frequently Asked Questions

Can I use speakers with different impedances in a series‑parallel setup?

Yes, but you must calculate the total load carefully. Mixing 4 Ω and 8 Ω speakers will change the final impedance, so verify the result with a multimeter before connecting to the amp.

What happens if I connect the speakers in pure parallel?

Pure parallel wiring of three 8 Ω speakers drops the load to about 2.7 Ω, which can cause the amp to overheat and possibly shut down or damage the speakers.

Is it safe to connect a subwoofer in the same series‑parallel network?

Only if the sub’s impedance and power handling are compatible with the other speakers. Often a dedicated subwoofer gets its own amplifier channel, but you can include it in the network with a proper crossover.

Do I need a special wire gauge for series‑parallel wiring?

Standard 16‑18 AWG speaker wire is sufficient for most home setups. Use thicker wire only if you’re running long distances (over 25 ft) or handling high‑power amplifiers.

How can I tell if my speakers are out of phase?

If the sound feels thin, lacks bass, or you hear a hollow effect, the speakers may be out of phase. Swap the positive and negative connections on one speaker and listen again; the correct phase will sound fuller.

What if my amplifier only supports 8 Ω loads?

In that case you can wire two speakers in parallel (resulting in 4 Ω) and keep the third speaker separate on its own channel, or use a series‑parallel arrangement that totals 8 Ω, such as two 4 Ω speakers in series parallel with an 8 Ω speaker.
