Bi‑wiring speakers can boost clarity and control by sending separate signals to the tweeter and woofer. Follow this friendly guide to gather tools, connect wires correctly, and enjoy richer audio without professional help. It’s simple, affordable, and worth the upgrade.
Key Takeaways
- Better control: Bi‑wiring lets you send dedicated amp channels to the tweeter and woofer, improving detail.
- Simple tools: All you need are two‑pair speaker wire, a screwdriver, and a compatible amp or receiver.
- Same impedance: Most speakers stay at their rated impedance when bi‑wired, so you don’t overload the amp.
- Check compatibility: Not every speaker benefits; look for dual binding posts or a “Bi‑wire” label.
- Safety first: Always power off and disconnect the amp before handling wires.
- Testing matters: Use a test tone or music track to confirm each channel works before final placement.
- Optional upgrade: If you love the results, consider bi‑amping for even greater performance.
📑 Table of Contents
Introduction: Why Bi‑Wiring Might Be Your Next Audio Upgrade
Imagine listening to your favorite album and hearing every instrument as if you were right in the studio. That extra sparkle often comes from a simple wiring trick called bi‑wiring. Instead of feeding both the tweeter (high‑frequency driver) and the woofer (low‑frequency driver) through a single set of speaker terminals, you run two separate sets of wires. The result? Cleaner highs, tighter lows, and less interference between the two drivers.
Many audiophiles swear by bi‑wiring, yet the process sounds intimidating. The good news is that with a few tools, a little patience, and the right instructions, anyone can do it. This guide answers the question “how do you bi wire speakers?” in plain language, step by step, so you can upgrade your sound system without calling a technician.
1. Understanding the Basics of Bi‑Wiring
What Is Bi‑Wiring?
Bi‑wiring uses two pairs of speaker wires for each speaker. One pair connects the amp’s left‑channel output to the speaker’s high‑frequency (HF) terminals, and the other pair connects the same amp output to the low‑frequency (LF) terminals. The speaker’s internal crossover still does its job, but the separate wires reduce the chance of the high‑frequency signal “leaking” into the low‑frequency path.

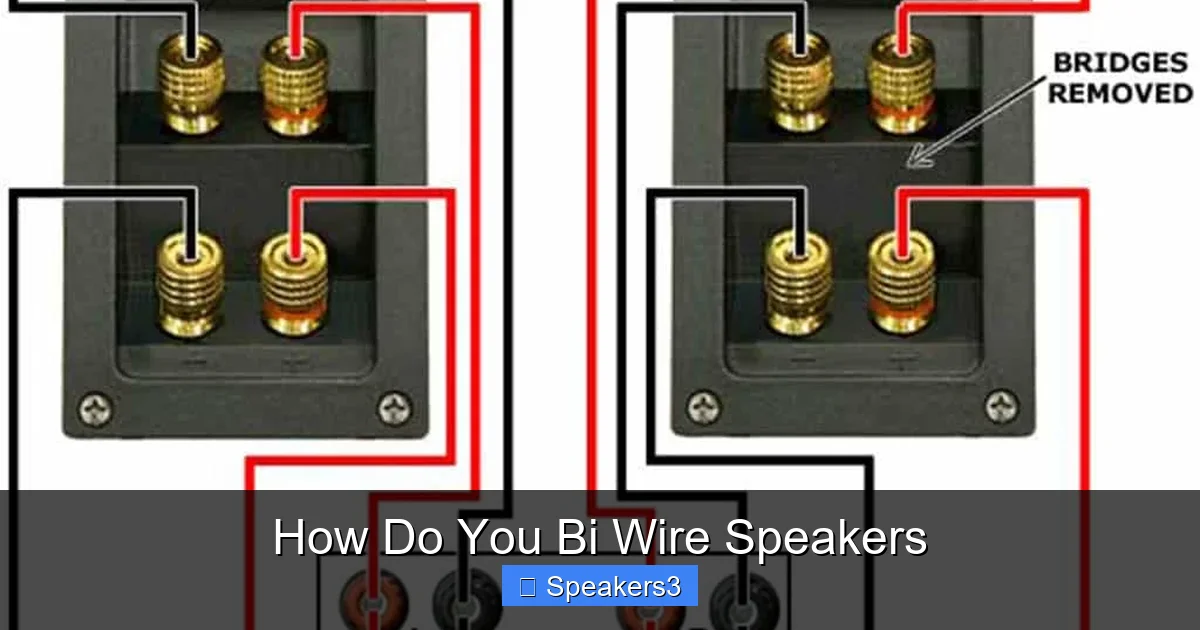

Visual guide about How Do You Bi Wire Speakers
Image source: img.freepik.com
Bi‑Wiring vs. Bi‑Amplifying
Don’t confuse bi‑wiring with bi‑amplifying. Bi‑amplifying requires two separate amplifiers (or a dedicated amp with multiple outputs) that drive the tweeter and woofer independently. Bi‑wiring, on the other hand, uses the same amp channel but splits the signal with extra wiring. Both can improve sound, but bi‑wiring is the cheaper, DIY‑friendly option.
Do All Speakers Support Bi‑Wiring?
Look for speakers that have either:
- Two sets of binding posts (often labeled “High” and “Low”).
- A single set of posts with a “Bi‑wire” tab that you can lift to separate the circuits.
If your speakers only have one set of terminals, you’ll need to stick with standard wiring or consider upgrading to bi‑wire‑ready models.
2. Gathering the Right Tools and Materials
Essential Tools
- Speaker wire: 16‑gauge two‑pair (or 14‑gauge for longer runs).
- Screwdriver: Flat‑head or Phillips, depending on your speaker’s binding post caps.
- Wire stripper/cutter: To expose fresh copper.
- Multimeter (optional): For checking continuity and confirming impedance.
Choosing the Right Wire
Most home‑theater setups work fine with 16‑gauge wire. If you’re running longer distances (over 50 ft) or using a high‑power amp, upgrade to 14‑gauge to reduce resistance.
Visual guide about How Do You Bi Wire Speakers
Image source: alpha-audio.nl
Safety Gear
Even though speaker wiring is low voltage, always disconnect the amp or receiver before you start. A quick safety tip: unplug the power cord and wait a minute for any residual charge to dissipate.
3. Step‑by‑Step Guide: How Do You Bi Wire Speakers?
Step 1 – Prepare Your Workspace
Clear a flat surface near your amp and speakers. Lay out the wires, stripper, and screwdriver so you won’t have to search mid‑process.
Visual guide about How Do You Bi Wire Speakers
Image source: hiddenmantra.com
Step 2 – Identify the Binding Posts
Most bi‑wire‑ready speakers have two sets of posts:
- High‑frequency (HF) posts: Usually marked “TWEETER” or “HIGH”.
- Low‑frequency (LF) posts: Marked “WOOFER” or “LOW”.
If your speakers have a single set with a removable tab, gently lift the tab to expose the separate circuits.
Step 3 – Strip the Wire Ends
Using the wire stripper, remove about ½ inch of insulation from each end of both pairs of wire. Twist the exposed strands so they stay together and avoid stray strands that could cause shorts.
Step 4 – Connect the First Pair (Low‑Frequency)
Take the first pair of wire and connect one end to the amp’s left‑channel (+) terminal. Secure the other end to the speaker’s LF (+) post. Repeat for the negative (‑) side, ensuring polarity matches on both amp and speaker.
Step 5 – Connect the Second Pair (High‑Frequency)
Now connect the second pair of wire from the same amp terminals (left‑channel + and –) to the speaker’s HF (+) and (‑) posts. The key is that both pairs share the same amp channel but travel on separate wires.
Step 6 – Repeat for the Right Channel
Mirror the process for the right‑channel speaker. Keep the wiring tidy; use zip ties or Velcro straps to prevent accidental pulls.
Step 7 – Double‑Check Connections
Before powering up, verify that:
- No stray strands are touching other terminals.
- Polarity is consistent (positive to positive, negative to negative).
- Both pairs are firmly tightened.
Step 8 – Power On and Test
Reconnect the amp, select a test tone or a familiar song, and listen for balanced sound. If the highs feel airy and the lows punchy, you’ve succeeded! If something sounds muffled, re‑check your wiring and ensure the speaker’s bi‑wire tabs are fully engaged.
4. Tips for Optimal Performance
Keep Wire Lengths Equal
For the best phase alignment, try to keep the HF and LF wire runs as close in length as possible. A few inches difference won’t hurt, but large mismatches can affect timing.
Use Quality Connectors (Optional)
If you prefer a cleaner look, invest in banana plugs or spade connectors. They make future changes easier and provide a secure, corrosion‑resistant connection.
Consider Bi‑Amping Later
Once you’re comfortable with bi‑wiring, you might upgrade to bi‑amplifying. Your speaker’s internal crossover will still work, but two separate amp channels can further reduce distortion. Learn more about speaker wiring basics in our How To Wire Speakers To Amp guide.
Maintain Your System
Dust the binding posts occasionally and check the wire insulation for wear. A clean connection ensures the longevity of your bi‑wired setup.
5. Troubleshooting Common Issues
No Sound from One Driver
If you hear only bass or only treble, you likely have a loose connection on the missing driver’s terminals. Re‑seat the wire and double‑check polarity.
Hum or Buzz
Ground loops can cause a low‑frequency hum. Ensure your amp and source devices share a common grounding point, and keep speaker wires away from power cords.
Impedance Mismatch Warning
Most modern amps can handle a 4‑ohm load per channel, even when bi‑wired. However, if you have an older amp with a strict 8‑ohm minimum, verify the speaker’s specifications. The total impedance usually remains unchanged, but it’s good to confirm.
Conclusion: Enjoy the Sound Upgrade
Bi‑wiring speakers is a straightforward, low‑cost way to extract more detail from the gear you already own. By following the steps above, you’ll learn exactly how do you bi wire speakers and enjoy clearer highs, tighter lows, and a more engaging listening experience. Remember to stay safe, double‑check connections, and have fun listening to the difference. Your ears will thank you!
Frequently Asked Questions
Can I bi‑wire any speaker?
Only speakers that have dual binding posts or a removable bi‑wire tab support bi‑wiring. Check the manufacturer’s specs or look for a “Bi‑wire” label.
Will bi‑wiring change my speaker’s impedance?
In most cases, bi‑wiring does not alter the rated impedance. The internal crossover still presents the same load to the amp.
Do I need a special amp for bi‑wiring?
No special amp is required. A standard stereo or home‑theater receiver works fine as long as it can drive the speakers’ impedance.
Is bi‑wiring worth it for small bookshelf speakers?
Yes, especially if the speakers have separate HF and LF drivers. You’ll notice clearer detail and better separation even in compact systems.
Can I use banana plugs with bi‑wired connections?
Absolutely. Banana plugs make connections secure and simplify future changes, but they’re optional.
What’s the difference between bi‑wiring and using a crossover network?
A crossover splits frequencies inside the speaker, while bi‑wiring separates the signal paths to reduce interference. They work together, not against each other.
