Wiring Speakers in Parallel Diagram

Wiring speakers in parallel diagram guides you through the basics, shows easy‑to‑draw schematics, and explains how parallel wiring affects impedance and power. Follow our practical examples to connect multiple speakers safely and get the best performance from your amp.

Key Takeaways

• Parallel wiring lowers total impedance: Connecting speakers in parallel halves the resistance, letting the amp deliver more current.
• Use the right gauge wire: Thicker wire reduces loss, especially over long runs.
• Check amp ratings first: Your amplifier must handle the combined load without overheating.
• Diagram simplicity matters: A clean wiring diagram prevents mistakes and saves time.
• Series vs. parallel: Knowing when to choose each method impacts tone and power distribution.
• Safety first: Always power off equipment before making connections.
• Test with a multimeter: Verify impedance and continuity before finalizing the setup.

Introduction: Why a Wiring Speakers in Parallel Diagram Matters

Imagine you’ve just bought a pair of bookshelf speakers, a subwoofer, and a set of rear surround speakers. All of them sound great on their own, but you want to power them from a single home‑theater amp. The easiest way to do that is to wire the speakers in parallel. A clear wiring speakers in parallel diagram removes the guesswork, helps you avoid short circuits, and ensures your amp sees the correct load.

In this article we’ll walk through the theory, draw step‑by‑step diagrams, and give you practical tips you can use right now. By the end, you’ll be able to sketch your own diagram, choose the right wire, and connect your speakers like a pro—all while keeping the language friendly and easy to understand.

Understanding Impedance and Parallel Connections

What is Impedance?

Impedance, measured in ohms (Ω), is the speaker’s resistance to alternating current. Most home speakers are rated at 4 Ω, 6 Ω, or 8 Ω. Your amplifier also has an impedance rating, usually 4 Ω to 8 Ω. Matching these numbers matters because it tells the amp how much current it needs to push.

How Parallel Wiring Changes Impedance

When you connect two 8 Ω speakers in parallel, the total impedance drops to 4 Ω. The formula is simple:

1 / Total Impedance = 1 / Impedance₁ + 1 / Impedance₂ + …

So for two 8 Ω speakers:

1 / Total = 1/8 + 1/8 = 2/8 → Total = 4 Ω.

This reduction lets the amp deliver more power, but only if the amp is rated for the lower load. Otherwise, you risk overheating.

When to Use Parallel Wiring

• When you have multiple speakers of the same rating and want even power distribution.
• When your amp can handle the lower combined impedance.
• When you need to keep wiring simple—parallel connections use fewer runs than series loops.

Drawing a Wiring Speakers in Parallel Diagram

Tools You’ll Need

• Pencil and graph paper or a free online diagram tool (e.g., draw.io).
• Speaker impedance data sheet.
• Amplifier specifications.
• Wire gauge chart.

Step‑by‑Step Diagram Guide

1. Start with the amp: Draw a rectangle labeled “Amp” and note its output terminals (Left + / –  and Right + / – ).
2. Mark each speaker: Draw circles for each speaker. Inside each circle write the impedance (e.g., 8 Ω).
3. Connect the positives: Draw a line from the amp’s left + terminal to the positive terminals of all left‑channel speakers. Use a single thick line to represent a common bus.
4. Connect the negatives: Repeat for the negative terminals, linking them back to the amp’s left – terminal.
5. Label wire gauge: Next to each run, note the recommended gauge (e.g., 16 AWG for runs under 25 ft).
6. Calculate total impedance: Write the formula at the bottom of the diagram and the resulting total (e.g., 4 Ω).

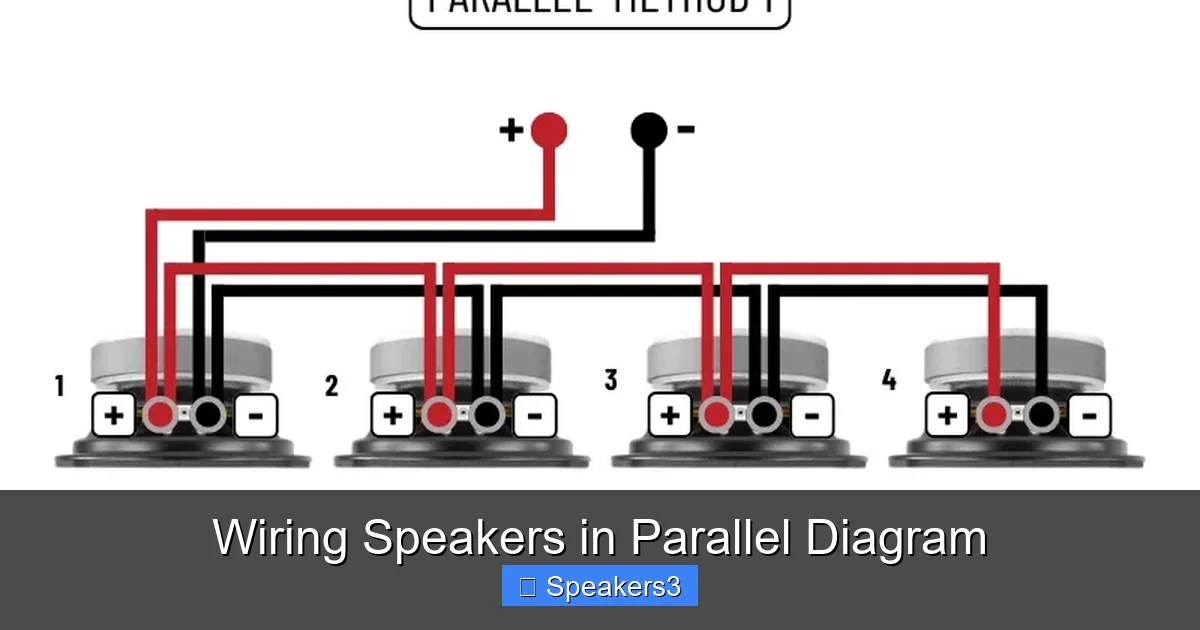

Example Diagram Description

Let’s say you have three 8 Ω speakers on the left channel. Your diagram would show one amp left + line splitting into three branches, each ending at a speaker’s positive terminal. The same happens on the negative side. The total impedance becomes 8 Ω ÷ 3 ≈ 2.7 Ω, which is below most amp ratings, so you’d need to either use a higher‑impedance speaker or add a resistor.

Practical Wiring Tips for Real‑World Installations

Choose the Right Wire Gauge

Long runs lose more signal, especially at low impedance. Use this quick guide:

• Up to 25 ft: 16 AWG is fine for 4 Ω‑8 Ω speakers.
• 25‑50 ft: Upgrade to 14 AWG.
• Over 50 ft: Use 12 AWG or thicker.

Thicker wire keeps resistance low, preserving clarity and power.

Secure Connections

Twist‑on spade connectors, banana plugs, or soldered crimps all work. Make sure each connection is tight—loose contacts cause crackling, a problem explained in Why Do My Speakers Crackle. Double‑check that no bare wire is exposed, which could short the circuit.

Safety First

Always turn off and unplug the amplifier before making any connections. Use a multimeter to verify continuity and to confirm the total impedance matches your calculations.

Balancing Power Across Speakers

If you notice one speaker louder than the others, check the wire lengths. Longer runs add resistance, reducing power. You can add a small resistor in series with the louder speaker to even things out, but it’s usually easier to keep all runs the same length.

Common Mistakes and How to Avoid Them

Overloading the Amplifier

Connecting too many low‑impedance speakers can drop the total load below the amp’s safe limit. For example, four 8 Ω speakers in parallel equal 2 Ω. Most consumer amps can’t handle that and may overheat.

Mixing Impedance Ratings

If you wire a 4 Ω and an 8 Ω speaker together in parallel, the total impedance becomes 2.67 Ω—again risky. Stick to matching impedances, or use a dedicated impedance‑matching transformer.

Incorrect Polarity

Reversing the positive and negative wires on one speaker flips its phase, causing cancellation and a thin sound. Always double‑check polarity before tightening the final connections.

Skipping the Diagram

Many DIYers jump straight into wiring and later discover a short or an unexpected load. A simple wiring speakers in parallel diagram prevents those headaches and saves time.

Advanced Topics: Combining Series and Parallel

Why Mix Series and Parallel?

Sometimes you need to connect many speakers but must keep the total impedance within the amp’s range. Mixing series and parallel lets you fine‑tune the load. For instance, two 8 Ω speakers in series equal 16 Ω; pair that series string in parallel with another 16 Ω string, and you end up with 8 Ω total.

Drawing a Mixed Diagram

Start with your series pairs, draw them as blocks, then connect those blocks in parallel to the amp. Label each block’s combined impedance so you can verify the final total.

Practical Example

Suppose you have four 8 Ω speakers for a surround system. Connect the front left and right speakers in series (16 Ω each), do the same for the rear pair, then wire those two series strings in parallel. The total load returns to 8 Ω, perfect for most AV receivers.

Testing and Fine‑Tuning Your Setup

Using a Multimeter

Set the multimeter to the “Ω” setting, place probes on the amp’s output terminals after wiring, and read the total impedance. It should match your calculated value within ±0.5 Ω.

Listening Test

Play a familiar track and listen for balance. If any speaker sounds weak, re‑check wiring, polarity, and wire length. Adjust as needed.

Maintenance Tips

• Periodically inspect connectors for corrosion.
• Re‑tighten any loose terminals after moving the speakers.
• Keep the wiring diagram in a safe place for future upgrades.

Conclusion: Mastering the Wiring Speakers in Parallel Diagram

Creating a clear wiring speakers in parallel diagram is the cornerstone of a safe, high‑performance audio system. By understanding impedance, choosing the right gauge, and following our step‑by‑step guide, you’ll avoid common pitfalls and enjoy balanced, powerful sound from every speaker. Remember to always verify your work with a multimeter and keep safety at the forefront. With these tools, you’re ready to tackle any home‑theater or DIY audio project with confidence.

Frequently Asked Questions

Can I wire any number of speakers in parallel?

Yes, but the total impedance drops as you add more speakers. Make sure your amplifier can handle the resulting load; otherwise, you risk overheating.

What gauge wire should I use for a 30‑foot run?

For a 30‑foot run with 4 Ω‑8 Ω speakers, 14 AWG wire is recommended to minimize resistance and maintain sound quality.

How do I know if my amp can handle a 2 Ω load?

Check the amp’s specifications in the user manual or on the manufacturer’s website. If it lists a minimum load of 4 Ω, a 2 Ω load is unsafe.

Is it okay to mix 4 Ω and 8 Ω speakers in parallel?

Mixing different impedances is possible, but the total load can become very low (e.g., 2.67 Ω for one 4 Ω and one 8 Ω speaker), which many amps cannot support.

Do I need a diagram if I only have two speakers?

Even with two speakers, a simple diagram helps you verify polarity and total impedance, preventing mistakes before you connect anything.
